Product Details:
|
| Material: | Aluminum | Fiber Count: | 24 |
|---|---|---|---|
| Color: | White | Connector: | SC UPC |
| Dimension: | 45*2.6*1.2mm | Weight: | 0.75KG |
| Insulation Resistance: | 2*104MΩ | Dielectric Strengt: | 15KV |
| High Light: | Singlemode Ftth Termination Box,SC UPC Ftth Termination Box,SC UPC Fiber Optic Distribution Box |
||

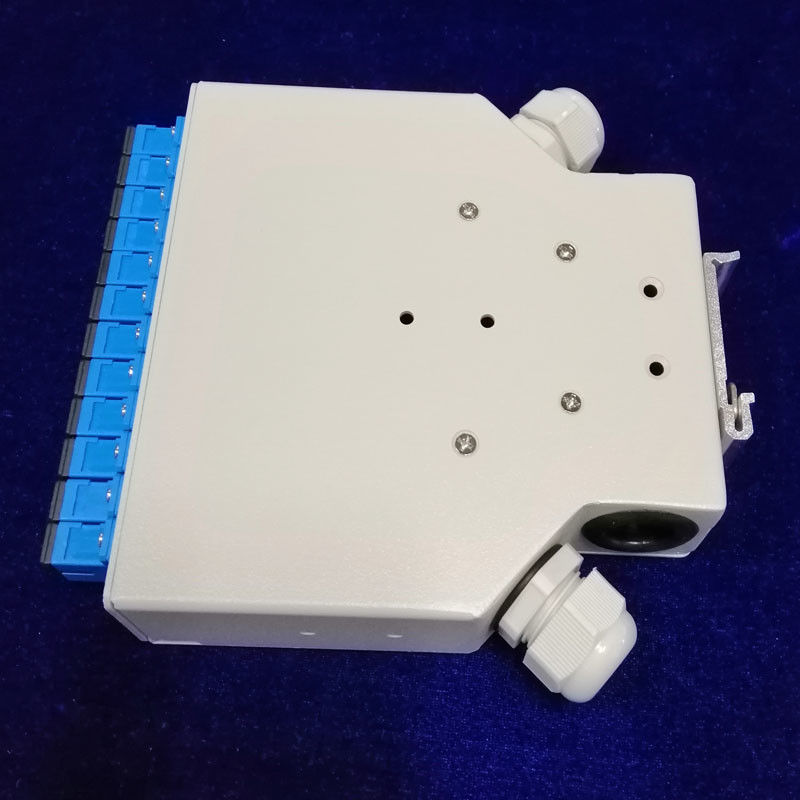

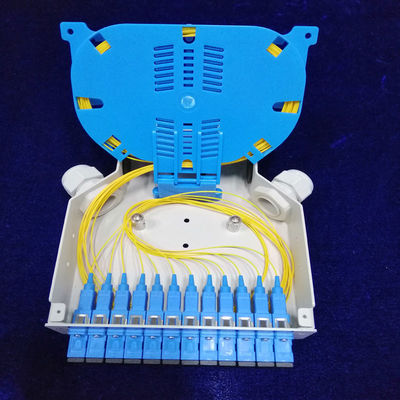

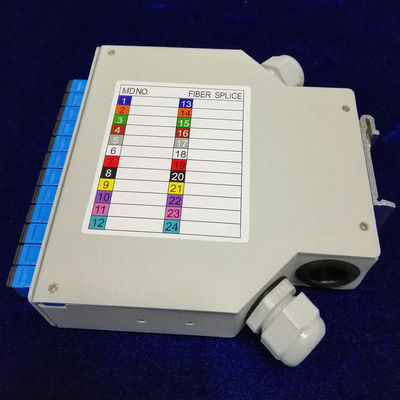

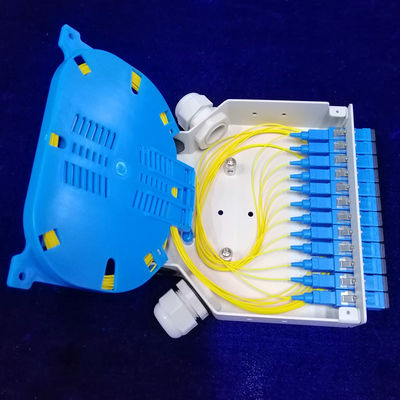

12 Cores Outdoor Fiber Optic Termination Box Singlemode SC UPC Aluminum
12 Ports Fiber optic termination box provides an economical way for terminating small optical fiber in which the optical cable or patch cord or pigtail is connected. It has white and black for option with black ABS material. Our this kind of DIN-028 is a DIN rail mounted fiber optic terminal box that used for fiber connection and distribution. It is made of PC plastic, inside with plastic splice tray, light weight, good to use. This item does not ship to China. Please check other sellers who may ship internationally. Due to increased demand, we temporarily have reduced product selection available for delivery to your region. We are working to improve selection availability as soon as possible.
Application
1. Suitable for Pigtail, ribbon and bunch cable connectors distribution;
2. Used in wall or terrace installation;
3. Used in Telecommunication networks and premise network installation.
Feature
● Reasonable design, aluminum box, light weight;
● Electrostatic powder painting, grey or black color;
● ABS plastic blue splice tray, rotatable design, compact structure;
● Max. 12 fibers capacity;
● FC, ST, LC, SC ... different adapter port available;
● DIN rail mounted application.
Termination Box Specifications
| Dimensions (W*H*D) | 45*2.6*1.2mm |
| Adapter Capacity | 12 x SC/FC simplex adapters or LC duplex adapters |
| Number of Cable Entrance/Exit | 2/12 simplex drop cables (Pre-connectorized cables supported) |
| Optional Accessories | Adapters, Pigtails, Heat Shrink Tubes |
| Weight | 0.75 KG |
Operation Conditions
| Temperature | -10℃to 50℃ (Other materials available upon request for extreme weather conditions) |
| Humidity | 95% at 40℃ |
| Air Pressure | 70kPa – 106kPa |
Shipping Information
| Package Contents | Distribution box: 1 unit; Wall mount installation accessories: 1 set |
| Package Dimensions(W*H*D) | 265mm*225mm*100mm |
| Material | Carton box |
| Weight | 1.5 KG |
| Lead Time | 10-15 working days normally |
Hangalaxy’s distribution box terminates outside optical cables with up to 12 fibers; it allocates 12 adapters for connecting with max 12 drop cable pigtails, it is also suitable for using with mini splitters. The box works under both indoor and outdoor environments. It is a perfect cost-effective solution-provider in the FTTH networks.
AAWG Module Factory
Quality Guarantee
We has this fiber optical termination box in stock and ready to ship. This ABS box for FTTH network is tested for 100% functionality and guaranteed compatible for outstanding network performance. Now you have a reliable, compatible and affordable means to expand your network while maintaining its integrity. We can provide this cable in any lengths. If the length you need is not listed on our website, please feel free to contact us.
