Product Details:
|
| Material: | ABS | Fiber Count: | 2 |
|---|---|---|---|
| Color: | White | Connector: | SC APC |
| Dimension: | 45*2.6*1.2mm | Weight: | 0.52KG |
| Insulation Resistance: | 2*104MΩ | Dielectric Strengt: | 15KV |
| High Light: | ROHS 2 Core Fiber Termination Box,SC APC Fiber Optic Termination Box,ABS Singlemode Fiber Termination Box |
||

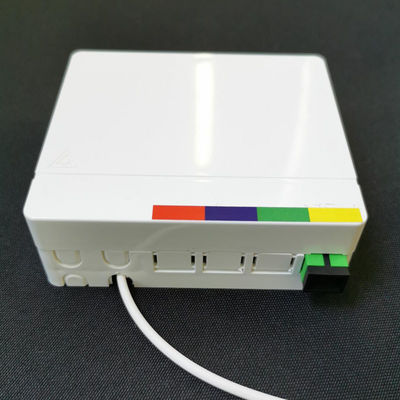

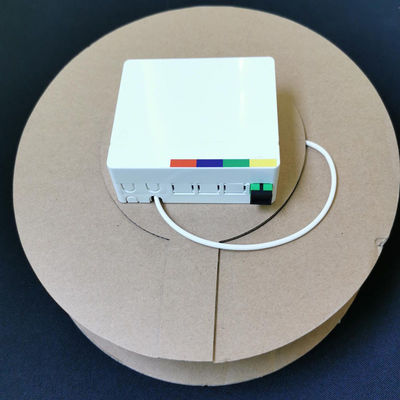

2 Cores Singlemode SC APC Pre-terminated Fiber Optic Termination ABS Box
Application
1. Suitable for Pigtail, ribbon and bunch cable connectors distribution;
2. Used in wall or terrace installation;
3. Used in Telecommunication networks and premise network installation.
Termination Box Specifications
| Dimensions (W*H*D) | 45*2.6*1.2mm |
| Adapter Capacity | 2 x SC/FC simplex adapters or LC duplex adapters |
| Number of Cable Entrance/Exit | 2 simplex drop cables (Pre-connectorized cables supported) |
| Optional Accessories | Adapters, Pigtails, Heat Shrink Tubes |
| Weight | 0.55 KG |
Operation Conditions
| Temperature | -10℃to 50℃ (Other materials available upon request for extreme weather conditions) |
| Humidity | 95% at 40℃ |
| Air Pressure | 70kPa – 106kPa |
Shipping Information
| Package Contents | Distribution box: 1 unit; Wall mount installation accessories: 1 set |
| Package Dimensions(W*H*D) | 265mm*225mm*100mm |
| Material | Carton box |
| Weight | 1.5 KG |
| Lead Time | 10-15 working days normally |
Feature
● Reasonable design, aluminum box, light weight;
● Electrostatic powder painting, grey or black color;
● ABS plastic blue splice tray, rotatable design, compact structure;
● Max. 12 fibers capacity;
● FC, ST, LC, SC ... different adapter port available;
● DIN rail mounted application.
Hangalaxy’s distribution box terminates outside optical cables with up to 12 fibers; it allocates 12 adapters for connecting with max 12 drop cable pigtails, it is also suitable for using with mini splitters. The box works under both indoor and outdoor environments. It is a perfect cost-effective solution-provider in the FTTH networks.
Hangalaxy Fiber Optic Termination Box Assembly Factory
