Product Details:
|
| Material: | ABS Plastic | Fiber Count: | 48 |
|---|---|---|---|
| Color: | Black | Connector: | SC APC |
| Dimension: | 260mm*220mm*95mm | Weight: | 0.75KG |
| Insulation Resistance: | 2*104MΩ | Dielectric Strengt: | 15KV |
| High Light: | FTTH Fiber Optic Termination Box,15KV Fiber Optic Termination Box,ABS 48 Cores Optic Termination Box |
||

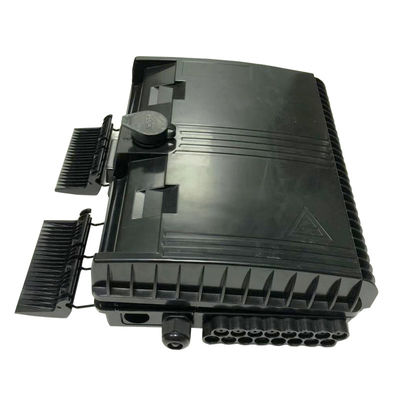

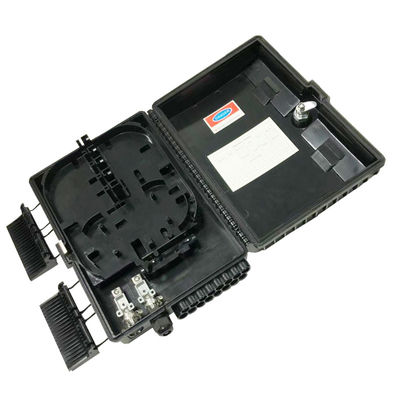

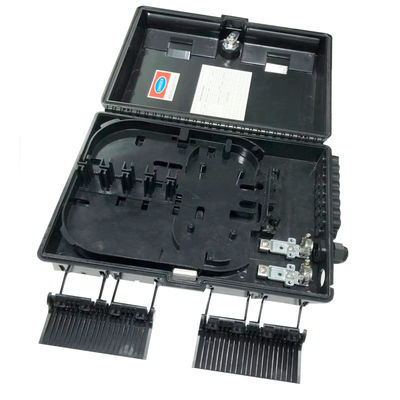

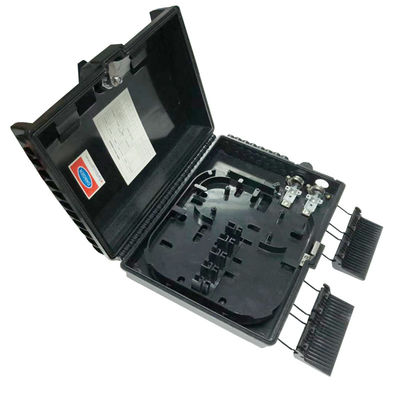

48 Cores Fiber Optic Termination Box Black ABS Plate for FTTH Solution
48 Port Fiber optic termination box provides an economical way for terminating small optical fiber in which the optical cable or patch cord or pigtail is connected. It has white and black for option with black ABS material.
Application
1. Suitable for Pigtail, ribbon and bunch cable connectors distribution;
2. Used in wall or terrace installation;
3. Used in Telecommunication networks and premise network installation.
Feature
1. Made with cold steel material and Electrostatic injection;
2. Small size with reasonable design;
3. Max 8fiber with LC, SC, ST, FC panel face for option;
4. Easy to access, two ports for indoor cable connection;
5. Fixed by screws on the box front;
6. Can have adapters, pigtails loaded per client requirement;
7. Working Temperature: -40℃ ~ +80℃;
8. Standard Accessories: insulation tape, nylon tie, labeling paper and fixer;
9. Dimension: 8 core-260 x130 x38mm (L x W x H).
Specification
| Dimensions (W*H*D) | 260mm*220mm*95mm |
| Adapter Capacity | 12 x SC/FC simplex adapters or LC duplex adapters |
| Number of Cable Entrance/Exit | 2/12 simplex drop cables (Pre-connectorized cables supported) |
| Optional Accessories | Adapters, Pigtails, Heat Shrink Tubes |
| Weight | 0.75 KG |
Operation Conditions
| Temperature | -10℃to 50℃ (Other materials available upon request for extreme weather conditions) |
| Humidity | 95% at 40℃ |
| Air Pressure | 70kPa – 106kPa |
Shipping Information
| Package Contents | Distribution box: 1 unit; Wall mount installation accessories: 1 set |
| Package Dimensions(W*H*D) | 265mm*225mm*100mm |
| Material | Carton box |
| Weight | 1.5 KG |
| Lead Time | 10-15 working days normally |
Hangalaxy’s distribution box terminates outside optical cables with up to 12 fibers; it allocates 12 adapters for connecting with max 12 drop cable pigtails, it is also suitable for using with mini splitters. The box works under both indoor and outdoor environments. It is a perfect cost-effective solution-provider in the FTTH networks.
