Product Details:
|
| Material: | ABS | Protection Grade: | IP67 |
|---|---|---|---|
| Color: | White | Connector: | SC APC |
| Dimension: | 250* 80*70mm | Weight: | 0.52KG |
| Insulation Resistance: | 2*104MΩ | Dielectric Strengt: | 15KV |
| High Light: | SC APC Indoor Fiber Termination Box,Waterproof ABS Ftth Box,SC APC ABS Ftth Box |
||

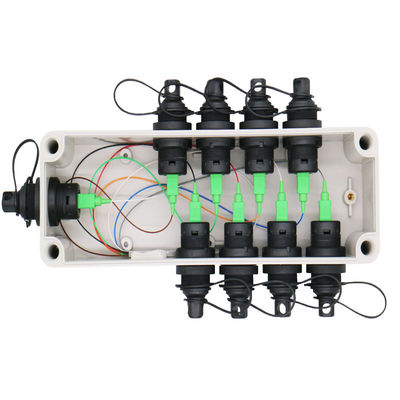

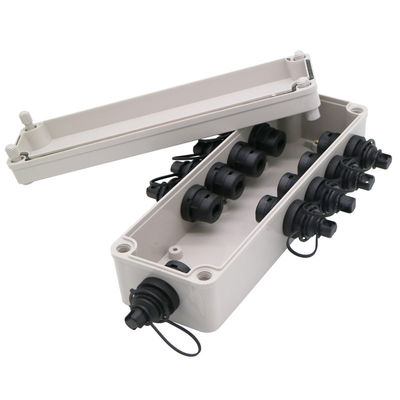

SC APC Loaded Outdoor Waterproof Pre-terminated Fiber Optic Termination ABS Box
BBU RRU Patch Cable is for CPRI application, that widely used in 3G, 4G and WIMAX base station, Long term Evolution(LTE), and Remote Radio Units to the FTTA connectivities. The boxes can be supplied fully loaded with all common adaptors including ST, SMA, SC, FC, SC Duplex, FDDI and ESCON types. They are supplied in a number of popular formats including 1in/1out, 1in/2out and 2in/2out. We provide a custom machining service enabling us to supply any other splice box configuration or hybrid enclosures on very short lead times.
Application
1. FTTA,FTTH Application;
2. 3G,4G Base Station;
3. Horizontal and Vertical Cabling;
4. BBU,RRU,RRH,LTE.
Termination Box Specifications
| Dimensions (W*H*D) | 250* 80*70mm |
| Adapter Capacity | 12 x SC/FC simplex adapters or LC duplex adapters |
| Number of Cable Entrance/Exit | 12 simplex drop cables (Pre-connectorized cables supported) |
| Optional Accessories | Adapters, Pigtails, Heat Shrink Tubes |
| Weight | 0.85 KG |
Operation Conditions
| Temperature | -10℃to 50℃ (Other materials available upon request for extreme weather conditions) |
| Protection Grade | IP67 |
| Air Pressure | 70kPa – 106kPa |
Shipping Information
| Package Contents | Distribution box: 1 unit; Wall mount installation accessories: 1 set |
| Package Dimensions(W*H*D) | 265mm*225mm*100mm |
| Material | Carton box |
| Weight | 1.5 KG |
| Lead Time | 10-15 working days normally |
Feature
● Reasonable design, aluminum box, light weight;
● Electrostatic powder painting, grey or black color;
● ABS plastic blue splice tray, rotatable design, compact structure;
● Max. 12 fibers capacity;
● FC, ST, LC, SC ... different adapter port available;
● DIN rail mounted application.
fiber distribution box terminates outside optical cables with up to 12 fibers; it allocates 12 adapters for connecting with max 12 drop cable pigtails, it is also suitable for using with mini splitters. The box works under both indoor and outdoor environments. It is a perfect cost-effective solution-provider in the FTTH networks.
