Product Details:
|
| Material: | Metal | Protection Grade: | IP65 |
|---|---|---|---|
| Color: | Black | Connector: | SC APC |
| Dimension: | 250* 80*70mm | Weight: | 0.52KG |
| Insulation Resistance: | 2*104MΩ | Dielectric Strengt: | 15KV |
| High Light: | SC LC Fiber Optic Termination Box,FC ST Fiber Optic Termination Box,FTTH IP65 Optic Termination Box |
||

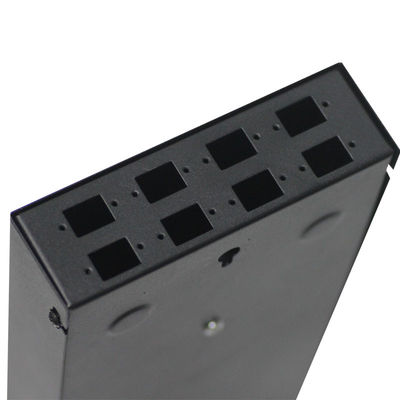

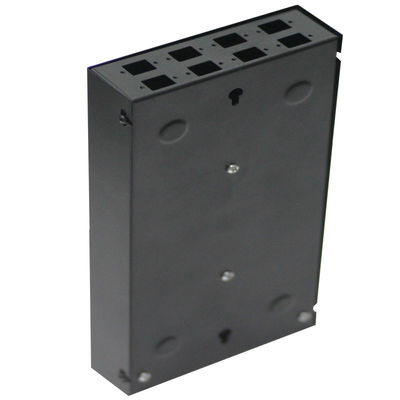

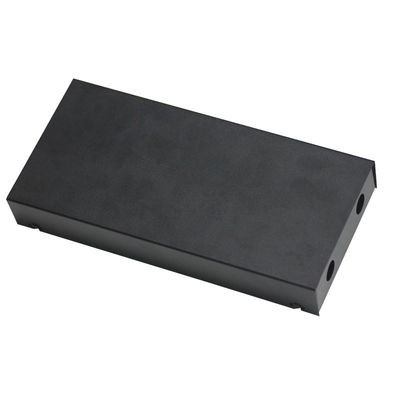

IP65 8 Ports SC LC FC ST Fiber Optic Termination FTTH Box Metal Black
ODVA BBU RRU Patch Cable is for CPRI application, that widely used in 3G, 4G and WIMAX base station, Long term Evolution(LTE), and Remote Radio Units to the FTTA connectivities. The boxes can be supplied fully loaded with all common adaptors including ST, SMA, SC, FC, SC Duplex, FDDI and ESCON types. They are supplied in a number of popular formats including 1in/1out, 1in/2out and 2in/2out. We provide a custom machining service enabling us to supply any other splice box configuration or hybrid enclosures on very short lead times.
Application
1. Telecommunications;
2. Local Area Networks;
3. FTTH deployment;
4. CATV.
Termination Box Specifications
| Dimensions (W*H*D) | 250* 135*70mm |
| Adapter Capacity | 8 x SC/FC simplex adapters or LC duplex adapters |
| Number of Cable Entrance/Exit | 8 simplex drop cables (Pre-connectorized cables supported) |
| Optional Accessories | Adapters, Pigtails, Heat Shrink Tubes |
| Weight | 0.34 KG |
Operation Conditions
|
Environment Temperature |
-25~+45°C |
| Relative Humidity | ≤85%( 30°C) |
| Air Pressure | 70kPa – 106kPa |
Shipping Information

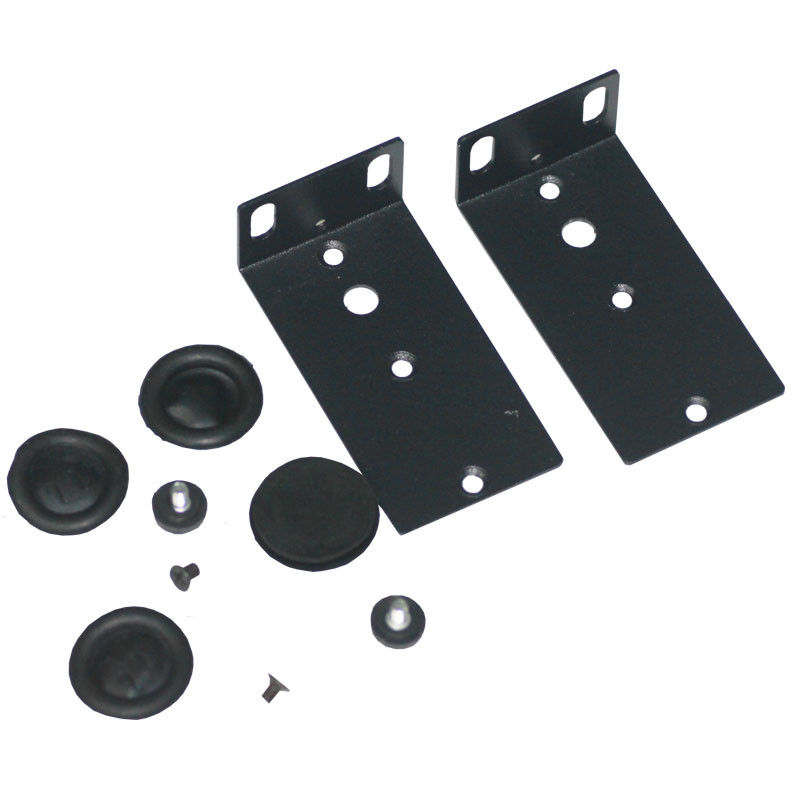

| Package Contents | Distribution box: 1 unit; Wall mount installation accessories: 1 set |
| Package Dimensions(W*H*D) | 265mm*225mm*100mm |
| Material | Carton box |
| Weight | 1.5 KG |
| Lead Time | 10-15 working days normally |
Feature
● Electrostatic spraying, beautiful appearance, easy to operate;
● Equip with cable fixed device, splice tray, thread ring;
● Splice tray use superposition structure,max capacity 96core,ribbon fiber up to144cores;
● It can insulate the cable metal parts and the terminal box shell and with grounding device;
● Have enough space for terminal placement and remaining fiber storage;
● Size is customize.
Hangalaxy’s distribution box terminates outside optical cables with up to 12 fibers; it allocates 12 adapters for connecting with max 12 drop cable pigtails, it is also suitable for using with mini splitters. The box works under both indoor and outdoor environments. It is a perfect cost-effective solution-provider in the FTTH networks.
Competitive Advantage
Our strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.
Fiber Optic Termination Box Assembly Factory
Quality Guarantee
We has this fiber optical termination box in stock and ready to ship. This ABS box for FTTH network is tested for 100% functionality and guaranteed compatible for outstanding network performance. Now you have a reliable, compatible and affordable means to expand your network while maintaining its integrity. We can provide this cable in any lengths. If the length you need is not listed on our website, please feel free to contact us.
