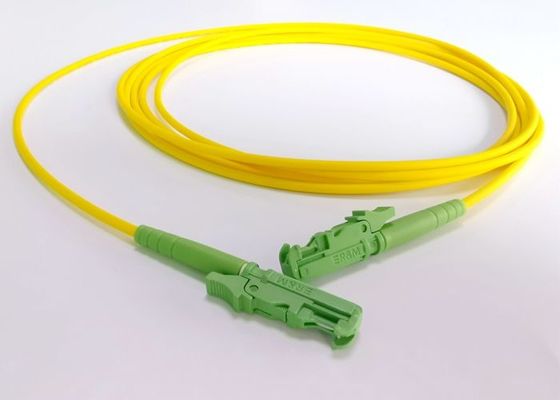

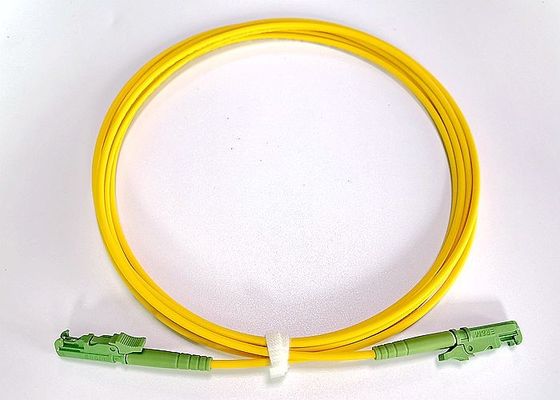

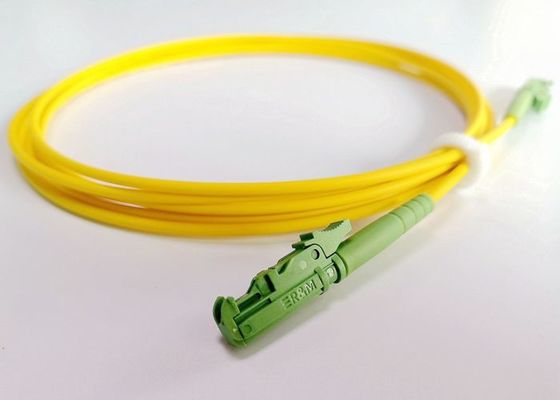

E2000 Single Core Single Mode Fiber Cable , Sc Lc Patch Cable

E2000 Single Core Single Mode Fiber Cable , Sc Lc Patch Cable
E2000 Single Core Single Mode Fiber Cable , Sc Lc Patch Cable E2000 Single Core Single Mode Fiber Cable , Sc Lc Patch Cable E2000 Single Core Single Mode Fiber Cable , Sc Lc Patch Cable

Large Image :  E2000 Single Core Single Mode Fiber Cable , Sc Lc Patch Cable

Product Details:
Place of Origin: china
Brand Name: OEM
Certification: ISO9001
Model Number: OEM
Payment & Shipping Terms:
Minimum Order Quantity: Support sample order
Price: Negotiation
Packaging Details: Individual packaging with Ziplock Bag
Delivery Time: 3-7 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 15000 connectors/day
Contact Now

E2000 Single Core Single Mode Fiber Cable , Sc Lc Patch Cable

Description
Fiber Type: G657A1 Cable Material: LSZH
Fiber Count: 1 Fibers Polish Type: APC
Application: For ODF Internal Link,For Room Equipment Internal Link,FTTH/Test Equipments/TV/LAN/Telecommunication Equipments Connector Type: SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO
Length: Customized Material: PVC/LSZH
Product Name: Fiber Optic Patch Cord
Highlight:

E2000 Single Mode Fiber Cable

,

E2000 Sc Lc Patch Cable

,

Single Core Sc Lc Patch Cable

E2000/APC-E2000/APC simplex 3.0mm fiber optic patch cord singlemode G657A1 LSZH for Ftth



Features

◆ LC, SC, ST, FC, MTRJ, E2000, MU connectors are available
◆ OM1, OM2, OM3, OM4, OM5 and OS2 are available
◆ Factory terminated and tested for insertion loss, return loss and end face
◆ Good repeatability and interchangeability
◆ Flame-retardant, rugged and durable jacket

Application

◆ High-density connectors, SFP and SFP+ transceivers, XFP transceivers
◆ Datacom and telecom; GPON; EPON; GBIC
◆ Measurement equipment, single mode lasers
◆ DWDM systems
◆ LANs and telecommunication networks

Specification


1. Operating & Storage Temperature

  Parameters Min Max Unit
1 Operating Temperature -40 85 °C
2 Storage Temperature -40 85 °C



2. Optical Performance



Item SM MM
  1310nm/1550nm IL(dB) 1310nm/1550nm RL(dB) 850nm IL(dB) 850nm RL(dB)
PC <=0.20 >=50 <=0.30 >=25
APC <=0.30 >=60 N/A N/A


3. Geometry Parameters



UPC
Item Pass/Fail
Parameters Min Max
ROC 7.0mm 25.00mm
Fiber Height -100.0nm 50.0nm
Apex Offset 0.00μm 50.00μm



APC
Item Pass/Fail
Parameters Min Max
ROC 5.0mm 12.00mm
Fiber Height -100.0nm 50.0nm
Apex Offset 0.00μm 50.00μm
APC Angle 7.700deg 8.300deg
Key Error -0.500deg 0.500deg


4. Details Picture



E2000 Single Core Single Mode Fiber Cable , Sc Lc Patch Cable 0



Standard Package



E2000 Single Core Single Mode Fiber Cable , Sc Lc Patch Cable 1



Product Advantages



◆ We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.
◆ We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.
◆ Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.
◆ Our service is qualified. We insist on responsive and knowledgeable service to each customer.

ORC QC Process Flow Chat

E2000 Single Core Single Mode Fiber Cable , Sc Lc Patch Cable 2

FAQ

1. Q: How can you test a single mode jumper?
    A: Our single mode patch cables have been tested for end-face inspection, singlemode IL and RL testing.

2. Q: Are these cables compatible with a variety of modules?
    A: Yes, LC cables can be compatible with SFP, SFP+(BIDI SFP+), XFP, SC cables can be compatible with BIDI SFP, GBIC, X2 and XENPAK.

3. Q: What's your average lead time?
    A: Our lead time is controlled within 5 working days for the regular products. For the MT products, our capacity is 3000 connectors per day.

4. Q: Can you produce according to the samples we send you?
    A: Of course, we can produce according to your samples or technical drawings.
