BBU RRU Fiber Optic Contact Closure , Optical Fiber Closure

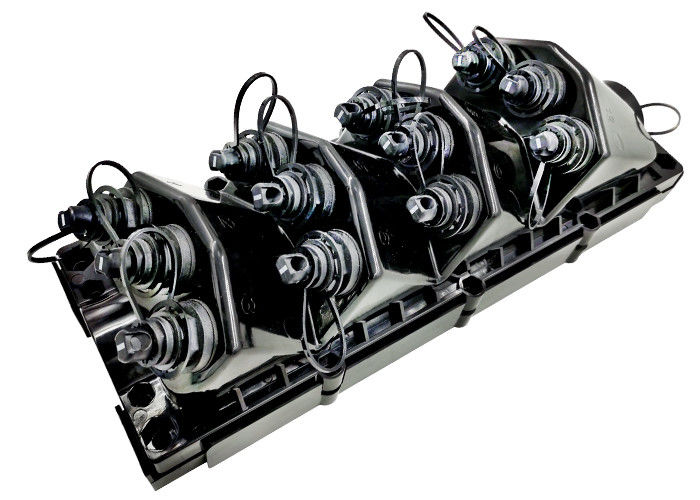

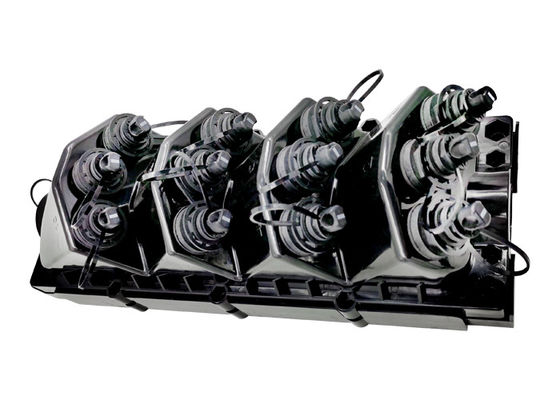

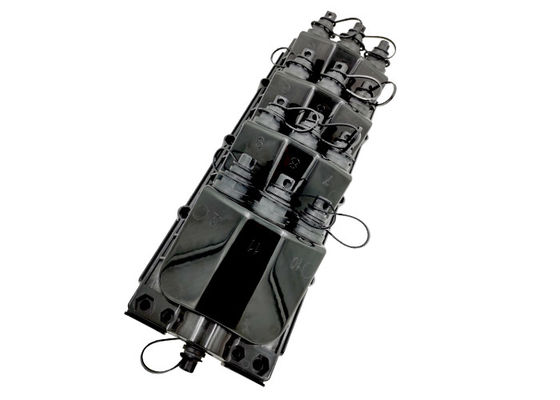

BBU RRU Waterproof Fiber Optic Closure 12 Core Mini MPO IP68 Terminal Box

     KXT-R-12M can use the connection between BUU and RRU. It can use the remote optical cable outdoor optical cable and better manage multiple links through MPO waterproof connector. The waterproof performance of this product reaches IP68, and it has a strong resistance to compression. It will fall naturally over 3 meters, and the product should not be broken! Small size and beautiful design!

Specification:

Cable Connecting

• Cable needs to be fusion welded frequently because of each drum cable length limited. So connecting point is weak and need to be protected very well.
• When Cable comes into KXT-R-12M, it will be sealed and fixed by torsion proof cable gland (plastic or metal type). For 5mm-14mm out diameter cable, KXT-R-12 has different accessories to fit. Torsion gland can release stress when trunk cable bending and protect fiber avoid breaking. Inside of the KXT-R-12M main cable and strength member were fixed by fastener, which make sure the box can stand 1200N pulling force long term.

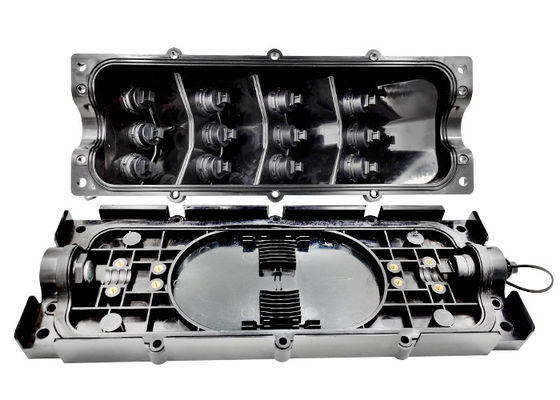

• Splice protection sleeve (Max. 24pcs) and PLC (Max.2pcs) can be fixed on the body, which make KXT-R-12 fiber divided very easy. Anti-skid design on the base case, which makes sure KXT-R-12 holds wire/pole firmly.

Prospecting or Military Communication

     The cable will be replayed frequently, when prospecting or military communication. Normal connector and cable cannot stand frequently and high strength pulling and reuse. Inside of the KXT-R-12M, armored cable and strength member were fixed by fastener, which make sure the box can stand 1200N pulling force long term. It’s very suitable for field use, especially in star network communications. High strength material and arc interface design make sure KXT-R-12M work abnormally when suffer shocks.Features and Benefits

1. •High compatibility: can be assembled ODVA, Hconn(OptiTap™ compatible), Mini SC, AARC, PTLC, PTMPO or
2. •Factory-sealed or field assembly
3. •Strong enough: working under 1200N pulling force long term •From 2 to 12 ports for single or multifiber harsh connectors
4. •Available with PLC or splice sleeve for fiber divide •IP67 waterproof rating,Wall mounting, aerial installation or holding pole installation
5. •Decreased angle surface and height make sure no connector interfering when operating
6. •Meet I EC 61753-1 standard
7. •Cost effective: save 40% operating time
8.

•       Traditionally, Remote Radio Unit (RRU) and Building Base band Unit (BBU) connected by optical fiber cable, formed star network topology. Each RRU need one duplex outdoor cable link to BBU. Installation will need more time and cost will be high.
•        KXT-R-12M work as an Aggregation/Demark box, link RRU and BBU together. From BBU to KXT-R-12M, only need one multi-fiber hybrid cable. Then KXT-R-12M divide fibers to each RRU through IP68 preassembled waterproof cable assemblies. RRU can get power through assembled power connector on KXT-R-12M.
