Product Details:
|
| Product Name: | 12 Core Fiber Optic Termination Box | Application: | FTTH FTTB FTTX Network |
|---|---|---|---|
| Material: | PC ABS | Installation: | Wall-mounted And Pole-mounted |
| PLC: | 1x8 And 1x16 PLC Splitter | Operating Temperature: | 40~+85 |
| Fiber Capacity: | 16/24core | Single Weight(kg): | 1.5 |
| High Light: | FCC Fiber Optic Distribution Unit,FCC Fiber Termination Box,ABS 12 Core Fiber Termination Box |
||

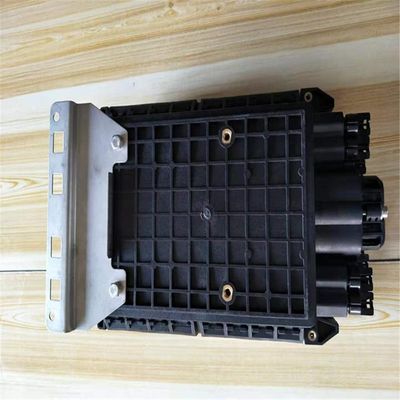

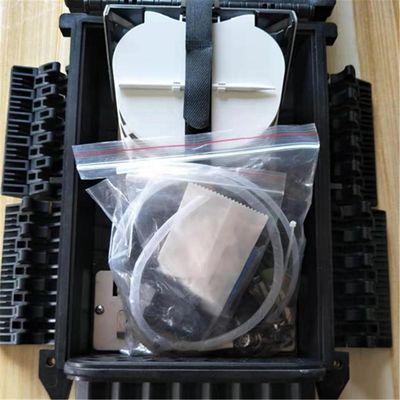

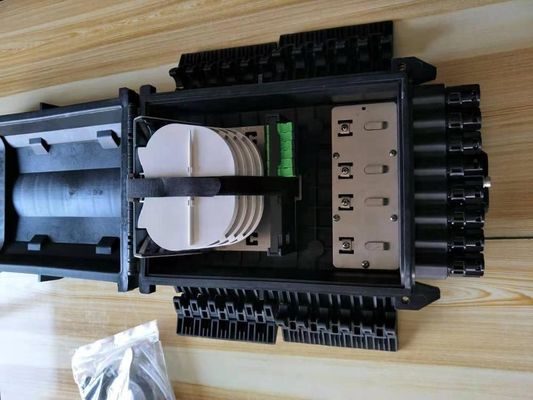

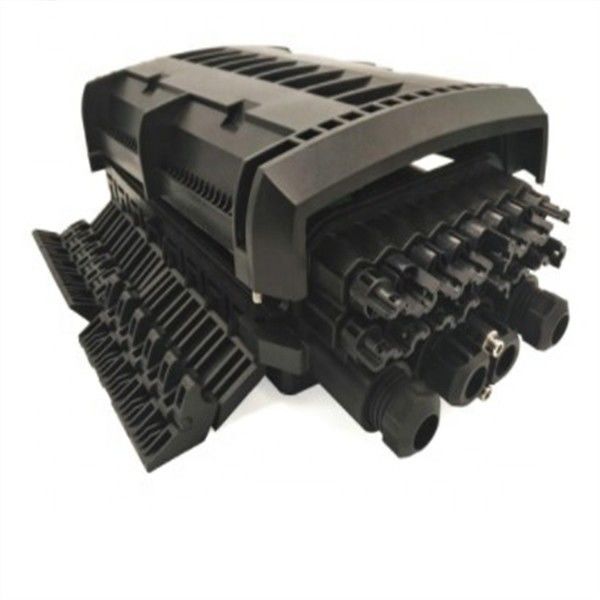

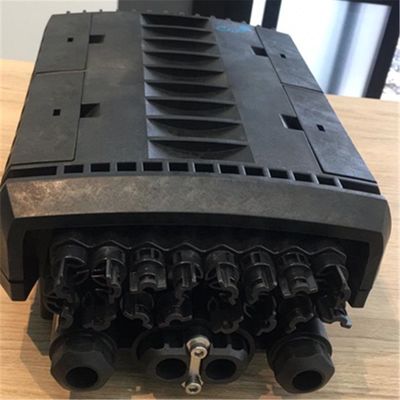

12 Port Optical Fiber Distribution Box Pole Mounting Black Shell For Ftth Network
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
1. Features
1, Total enclosed structure.
2, Material: PC,wet-proof. water-proof. dust-proof. anti-aging, protection level up to IP68.
3, Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
4, Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC/LC/PLC adaptor installation, easy maintenance.
5, Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
6, Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
2. Specification
1) Environmental requirement
Working temperature: -40℃~+85℃
Relative humidity: ≤85%(+30℃)
Atmospheric pressure: 70KPa~106Kpa
2) Main technical data-sheet
Insertion loss: ≤0.2dB
UPC return loss: ≥50dB
APC return loss: ≥60dB
Life of insertion and extraction: >1000 times
Q1: How the warranty for products ?
A: 10 years,and maintance for whole life
Q2: Can we make OEM for products?
A: Yes, we can print your logo or label on the products or on the box.
Q3: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.
Q4: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q5: What is your delivery time ?
A: Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q6: What's your payment terms ?
A: We accept T/T, Western Union, Money Gram, Paypal.
For samples: 100% payment. Formal order: 30% as deposit, 70% balance payment before shipment
