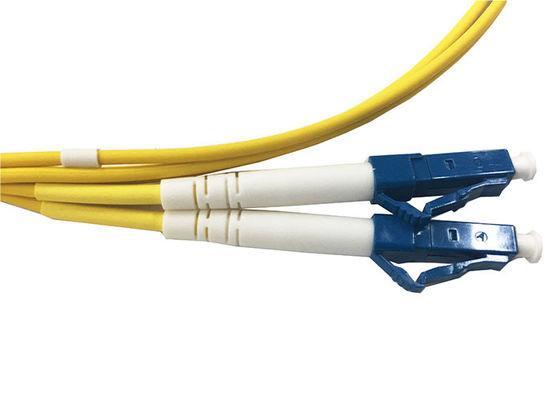

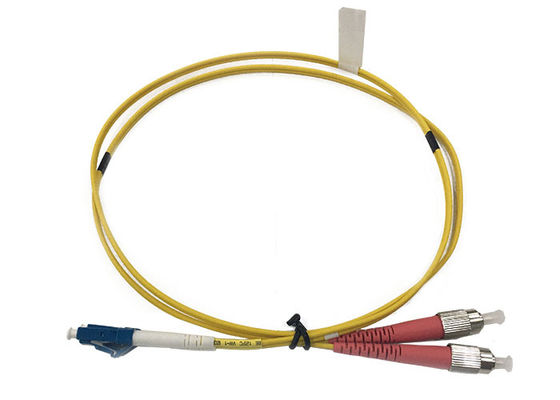

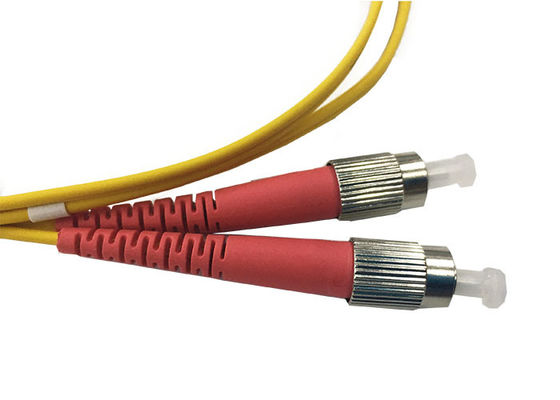

LC/UPC-FC/UPC duplex 2.0mm 1M fiber optic patch cord singlemode G652D LSZH
Standard fiber optic patch cables are designed for data center, enterprise, FTTx, LAN and WAN, CATV network, telecom network applications etc. which require quick infrastructure deployment such as main, horizontal, and zone distribution areas.
Fiber optic patch cables, manufactured and tested in compliance with TIA 604, IEC 61754 and YD/T industry standards, have OM1, OM2, OM3, OM4, OM5 or OS2 fiber types to meet the demand of Gigabit Ethernet, 10 Gigabit Ethernet and high speed fiber channel. Every termination is through rigorous parameter test to ensure the highest network performance.
Features
◆LC, SC, ST, FC, MTRJ, E2000, MU connectors are available
◆OM1, OM2, OM3, OM4, OM5 and OS2 are available
◆Factory terminated and tested for insertion loss, return loss and end face
◆Good repeatability and interchangeability
◆Flame-retardant, rugged and durable jacket
Application
◆High-density connectors, SFP and SFP+ transceivers, XFP transceivers
◆Datacom and telecom; GPON; EPON; GBIC
◆Measurement equipment, single mode lasers
◆DWDM systems
◆LANs and telecommunication networks
Specification
1. Operating & Storage Temperature
| |
Parameters |
Min |
Max |
Unit |
| 1 |
Operating Temperature |
-40 |
85 |
°C |
| 2 |
Storage Temperature |
-40 |
85 |
°C |
2. Optical Performance
| Item |
SM |
MM |
| |
1310nm/1550nm IL(dB) |
1310nm/1550nm RL(dB) |
850nm IL(dB) |
850nm RL(dB) |
| PC |
<=0.20 |
>=50 |
<=0.30 |
>=25 |
| APC |
<=0.30 |
>=60 |
N/A |
N/A |
3. Geometry Parameters
| UPC |
| Item |
Pass/Fail |
| Parameters |
Min |
Max |
| ROC |
7.0mm |
25.00mm |
| Fiber Height |
-100.0nm |
50.0nm |
| Apex Offset |
0.00μm |
50.00μm |
| APC |
| Item |
Pass/Fail |
| Parameters |
Min |
Max |
| ROC |
5.0mm |
12.00mm |
| Fiber Height |
-100.0nm |
50.0nm |
| Apex Offset |
0.00μm |
50.00μm |
| APC Angle |
7.700deg |
8.300deg |
| Key Error |
-0.500deg |
0.500deg |
4. Drawing
Standard Package
Product Advantages
◆We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.
◆We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.
◆Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.
◆Our service is qualified. We insist on responsive and knowledgeable service to each customer.
ORC QC Process Flow Chat
FAQ
1. Q: How can you test a single mode jumper?
A: Our single mode patch cables have been tested for end-face inspection, singlemode IL and RL testing.
2. Q: Are these cables compatible with a variety of modules?
A: Yes, LC cables can be compatible with SFP, SFP+(BIDI SFP+), XFP, SC cables can be compatible with BIDI SFP, GBIC, X2 and XENPAK.
3. Q: What's your average lead time?
A: Our lead time is controlled within 5 working days for the regular products. For the MT products, our capacity is 3000 connectors per day.
4. Q: Can you produce according to the samples we send you?
A: Of course, we can produce according to your samples or technical drawings.
