1.25G Lc Connector 20Km Single Bidirectional Optical Transceiver

Bidirectional Fiber Optic Transceiver 1.25G Lc Connector 20Km Single Fiber Sfp Module

Description

SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and
120km transmission distance with SMF.The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode
integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.


Feature

● Operating case temperature:
Commerical:0 to 70 °C Industrial:-40 to 85 °C


Absolute Maximum Ratings

Parameter	Symbol	Min.	Max.	Unit	Note
Supply Voltage	Vcc	-0.5	4.0	V
Storage Temperature		-40	85	°C
Relative Humidity		5	85	%



Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.

General Operating Characteristics

Parameter	Symbol	Min.	Typ	Max.	Unit	Note
Data Rate			1250		Mb/s
Supply Voltage	Vcc	3.13	3.3	3.47	V
Supply Current	Icc5			220	mA
Operating Case Temp.	Tc	0		70	°C
		-10		80	°C
		-40		85	°C

OPTICAL CHARACTERISTICS

l )Transmitter

arameter	Symbol	Min.	Typ	Max.	Unit	Note
Operating Wavelength	λC	1270	1310	1360	nm
		1470	1490	1510
Ave. output power (Enabled)	Po	-8		-4	dBm	1
Extinction Ratio	ER	9			dB	1
RMS spectral width	Δλ			4	nm
Rise/Fall time (20%~80%)	Tr/Tf			0.26	ps	2
Output Eye Mask	Compliant with IEEE802.3 z (class 1 laser safety)

Note (1): Measure at 2^23-1 NRZ PRBS pattern

Note (2): Transmitter eye mask definition

2)Receiver

Parameter	Symbol	Min.	Typ	Max.	Unit	Note
Operating Wavelength		1470	1490	1510	nm
		1270	1310	1360
Sensitivity	Psen			-22	dBm	1
Min. overload	Pimax	-3			dBm
LOS Assert	Pa	-35			dBm
LOS De-assert	Pd			-23	dBm	2
LOS Hysteresis	Pd-Pa	0.5		6	dB

Note (1): Measured with Light source 1490nm(1310nm), ER=9dB; BER =<10^-12 @PRBS=2^23-1 NRZ.

Note (2): When LOS de-asserted, the RX data+/- output is signal output.



Ordering Information

SFP BIDI,LC,Tx1310/Rx1550nm 1.25Gbps, 20km, with DDM

SFP BIDI,LC,Tx1550/Rx1310nm 1.25Gbps, 20km, with DDM

SFP BIDI,LC,Tx1310/Rx1550nm 1.25Gbps, 20km, without DDM

SFP BIDI,LC,Tx1550/Rx1310nm 1.25Gbps, 20km, without DDM



Applications

1. Gigabit Ethernet

2. Fiber Channel

3. Switch to Switch interface

4. Switched backplane applications

5. Router/Server interface

6. Other optical transmission systems

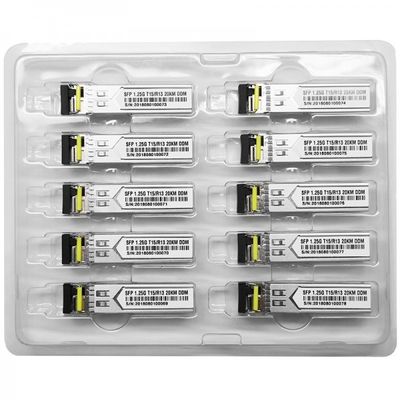

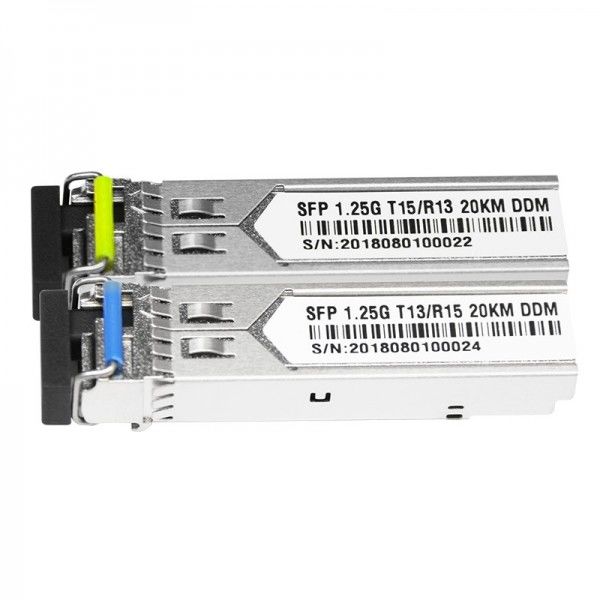

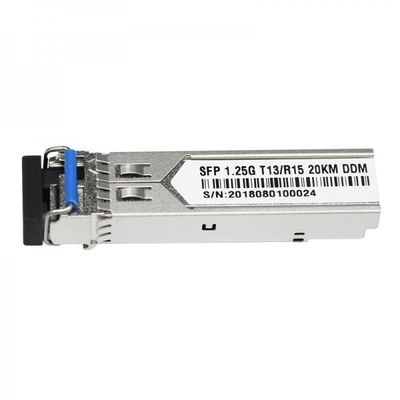

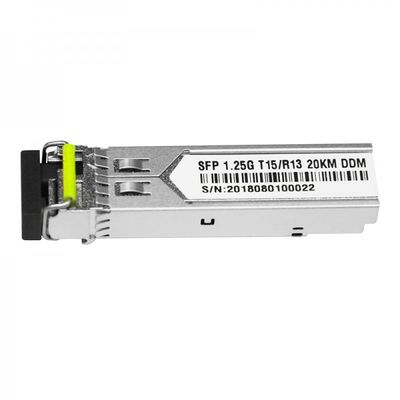

Product Pictures
