Product Details:
|
| Product Name: | PLC Splitter | Fiber Type: | G657A,Single Mode |
|---|---|---|---|
| Application: | FTTH FTTB FTTX Network,Splitter,LAN,Fiber To Home,PON & Optical CATV | Type: | 2/3/4/8/16/32/64ports,splitter,1x16,1x4 1x8 1x16 1x32 |
| Connector: | SC/APC/UPC,SC/UPC,SC APC | ||
| High Light: | LSZH Fiber Optic PLC Splitter,1 X 16 Fiber Optic PLC Splitter,SM Fiber Optic PLC Splitter |
||

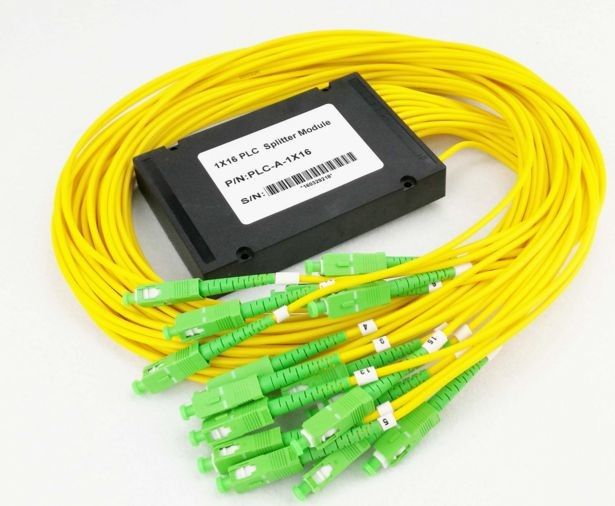

PLC Splitter 1X16 SM 100*80*10mm ABS box 2.0mm LSZH with SC/APC Connector
Planar lightwave circuit (PLC) splitter is features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in PON networks to realize optical signal power management. ORC provides a whole series of 1xN and 2xN splitters that are tailored for specific applications. All products meet Telcordia 1209 and 1221 reliability requirements
Product Information
Description: 1×16PLC Splitter Module, input and output fiber with 2.0mm loose tube, 1.0m pigtail with LC/APC connector.
Performance Specifications
| Parameters | Specifications | Units | Notes |
| Channel Number | 1×16 | Comply with RoHS requirement | |
| Operation Wavelength | 1260 ~ 1650 | nm | |
| Insertion Loss 1 | ≤13.8 | dB | |
| Polarization Dependent Loss | ≤0.3 | dB | |
| Uniformity | ≤1.2 | dB | |
| Return Loss | ≥50 | dB | |
| Directivity | ≥55 | dB | |
| Fiber Type | G657A | ||
| Pigtail Type | 2.0mm loose tube | ||
| Length | ≥1.0 | m | |
| Connector Type | LC/APC | ||
| Mark | Input:Blue | ||
| Output:Yellow | |||
| Package Dimension | 120×80×18 | mm | |
| Operating Temperature | -40~ +85 | ℃ | |
| Storage Temperature | -40 ~ +85 | ℃ |
Notes: 1. Insertion Loss tested without connector.
