Compact Tight Buffered Fiber Optic PLC Splitter 1 x 64

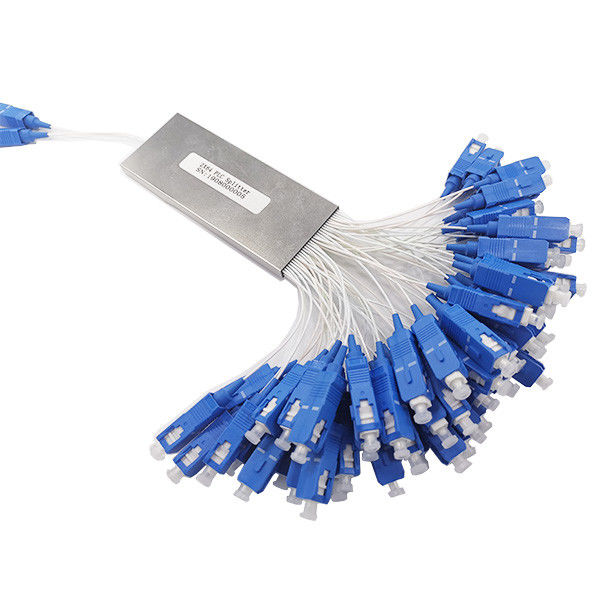

Large Image : Compact Tight Buffered Fiber Optic PLC Splitter 1 x 64

Product Details:

Place of Origin:	china
Brand Name:	OEM
Certification:	ISO9001
Model Number:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	Support sample order
Price:	Negotiation
Packaging Details:	Individual packaging with Ziplock Bag
Delivery Time:	3-7 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	250 pcs/day

Contact Now

Compact Tight Buffered Fiber Optic PLC Splitter 1 x 64

Description

Type:	Mini Module	Channel Number:	1X64
Splitting Ratio:	Even	Cable Type:	G657A1
Connector Type:	SC/UPC	Cable Diameter:	0.9mm
High Light:	Fiber Optic PLC Splitter 1 x 64 , Buffered Fiber Optic PLC Splitter , Compact Tight Fiber Optic PLC Splitter

1 x 64 Fiber Optic PLC Splitter , Compact Tight Buffered Fiber Optic Cable

Mini module type Planar Light wave Circuit (PLC) Splitter, utilizing the PLC photonic chip, allows light signal received and distributed at the same time. The super compact package size saves a lot of plate space for customer, and high quality, reliable components are assembled at a dedicated manufacturing facility. Unconnectorized PLC splitters come with no connectors for easy splicing or connectorization. Connectorized PLC Splitters are available with your choice of Fiber Optic Connectors: LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, and ST/UPC.

Features

◆ Wide Operating Temperature: From -40℃ to 85℃

◆ Wide Operating Wavelength: From 1260nm to 1650nm

◆ Compact Design

◆ Good channel-to-channel uniformity

Application

◆ Optical Signal Distribution

◆ CATV Links

◆ FTTX Systems

◆ PON Networks

Performance Specifications

Parameters	Specifications	Unit	Notes
Channel Number	1X64		Comply with RoHS requirement Insertion Loss tested without connector
Operation Wavelength	1260-1650	nm
Insertion Loss	≤20.5	dB
Polarization Dependent	≤0.4	dB
Uniformity	≤1.6	dB
Return Loss	≥50	dB
Directivity	≥55	dB
Fiber Type	G657A1 or other types according to customer demand
Length	1.0	M
Connector Type	None or SC/LC/FC/ST
Package Dimension	141(L)x115(W)x18(H)	mm
Operating Temperature	-40-+85	℃
Storage Temperature	-40-+85	℃

Product Advantages

◆ We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.

◆ We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.

◆ Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.

◆ Our service is qualified. We insist on responsive and knowledgeable service to each customer.

ORC QC Process Flow Chat

FAQ

1. Q: What's your average lead time?

A: Our lead time is controlled within 5 working days for the regular products.

2. Q: Can you produce according to the samples we send you?

A: Of course, we can produce according to your samples or technical drawings.
