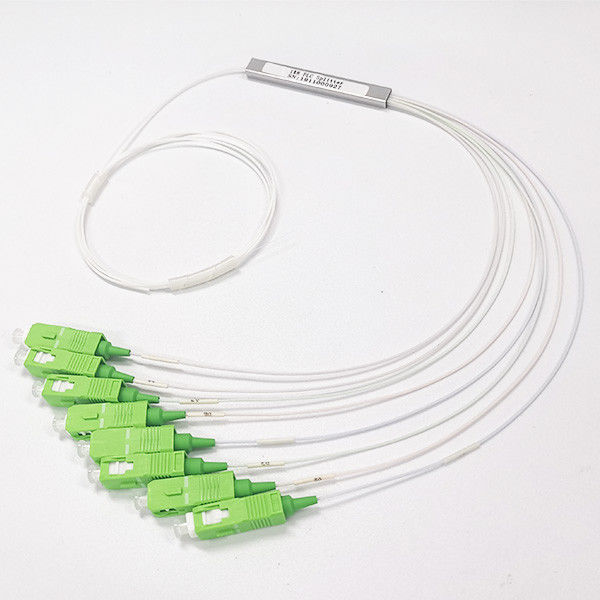

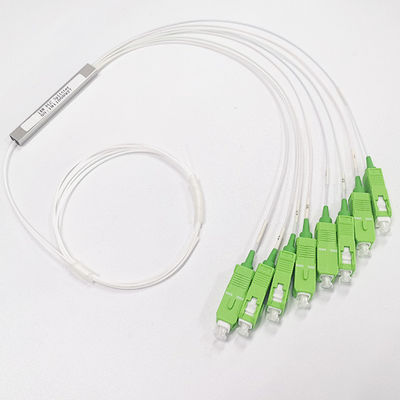

0.9mm Tight Tube Cable SC APC Connector Fiber Optic PLC Splitter

0.9mm Tight Tube Cable SC APC Connector Fiber Optic PLC Splitter
0.9mm Tight Tube Cable SC APC Connector Fiber Optic PLC Splitter 0.9mm Tight Tube Cable SC APC Connector Fiber Optic PLC Splitter

Large Image :  0.9mm Tight Tube Cable SC APC Connector Fiber Optic PLC Splitter

Product Details:
Place of Origin: china
Brand Name: OEM
Certification: ISO9001
Model Number: OEM
Payment & Shipping Terms:
Minimum Order Quantity: Support sample order
Price: Negotiation
Packaging Details: Individual packaging with plastic box
Delivery Time: 3-7 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1700 pcs/day
Contact Now

0.9mm Tight Tube Cable SC APC Connector Fiber Optic PLC Splitter

Description
Type: Mini Module Channel Number: 1X8
Splitting Ratio: Even Cable Type: G657A1
Connector Type: SC/APC Cable Diameter: 0.9mm
Highlight:

0.9mm Fiber Optic PLC Splitter

,

0.9mm SC APC Splitter

,

Tight Tube Cable Fiber PLC Splitter

Passive fiber optic splitter 1:8 mini module type splitter PLC 0.9mm tight tube cable with SC / APC connectors

Mini module type Planar Light wave Circuit (PLC) Splitter, widely used in the PON network, utilizes the PLC photonic chip, allows light signal received and distributed at the same time. The super compact package size saves a lot of plate space for customer, and high quality, reliable components are assembled at a dedicated manufacturing facility. Unconnectorized PLC splitters come with no connectors for easy splicing or connectorization. Connectorized PLC Splitters are available with your choice of Fiber Optic Connectors: LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, and ST/UPC.

Features

◆ Wide Operating Temperature: From -40℃ to 85℃
◆ Wide Operating Wavelength: From 1260nm to 1650nm
◆ 0.9mm tube for Input and Output
◆ High Reliability and Stability
◆ Good channel-to-channel uniformity

Application

◆ Optical Signal Distribution
◆ Optical LAN, Metro, WAN networks
◆ CATV Links
◆ FTTX Systems
◆ PON Networks

Performance Specifications

Parameters Specifications Unit Notes
Channel Number 1X8

Comply with RoHS requirement



Insertion Loss tested without connector
Operation Wavelength 1260-1650 nm
Insertion Loss@1310/1550nm ≤10.6 dB
PDL@1310/1550nm ≤0.3 dB
Uniformity@1310/1550nm ≤0.8 dB
Return Loss@1310/1550nm ≥50 dB
Directivity@1310/1550nm ≥55 dB
Fiber Type G657A1 or other types according to customer demand
Length 1.0 M
Connector Type None or SC/LC/FC/ST
Package Dimension 60(L)x7(W)x4(H) mm
Operating Temperature -40-+85 ℃
Storage Temperature -40-+85 ℃





0.9mm Tight Tube Cable SC APC Connector Fiber Optic PLC Splitter 0



Product Advantages



◆ We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.
◆ We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.
◆ Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.
◆ Our service is qualified. We insist on responsive and knowledgeable service to each customer.

ORC QC Process Flow Chat

0.9mm Tight Tube Cable SC APC Connector Fiber Optic PLC Splitter 1

FAQ

1. Q: What's your average lead time?
    A: Our lead time is controlled within 5 working days for the regular products.

2. Q: Can you produce according to the samples we send you?
    A: Of course, we can produce according to your samples or technical drawings.
