Light Weight LGX Box Type 1x8 Fiber Optic PLC Splitter

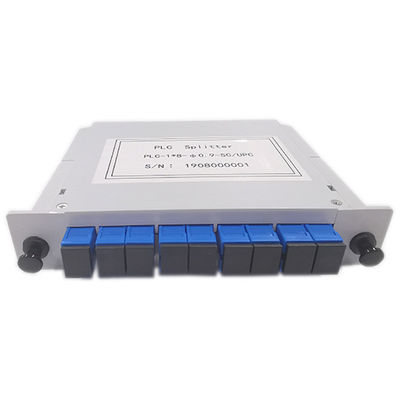

Large Image : Light Weight LGX Box Type 1x8 Fiber Optic PLC Splitter

Product Details:

Place of Origin:	china
Brand Name:	OEM
Certification:	ISO9001
Model Number:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	Support sample order
Price:	Negotiation
Packaging Details:	Individual packaging with plastic box
Delivery Time:	3-7 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1700 pcs/day

Contact Now

Light Weight LGX Box Type 1x8 Fiber Optic PLC Splitter

Description

Type:	LGX Box Type	Channel Number:	1X8
Splitting Ratio:	Even	Cable Type:	G657A1
Connector Type:	SC/UPC	Cable Diameter:	0.9mm
High Light:	1x8 Fiber Optic PLC Splitter , Light Weight 1x8 PLC Splitter , LGX Box Fiber Optic PLC Splitter

LGX Box Type Fiber Optic PLC Splitter , 1x8 Plc Splitter With SC / UPC Adapters

LGX style Planar Light wave Circuit (PLC) Splitter utilizing the PLC photonic chip, allows light signal received and distributed at the same time. The LGX box 1:8 splitter can load the mini module 1:8 PLC and is suitable for different FTTH terminal boxes. The LGX box type splitter usually installed with SC adapters.

Features

◆ Wide Operating Temperature: From -40℃ to 85℃

◆ Wide Operating Wavelength: From 1260nm to 1650nm

◆ Light weight, plastic material

◆ Modular design, easy for installation and management

◆ Good channel-to-channel uniformity

Application

◆ Optical Signal Distribution

◆ Optical LAN, Metro, WAN networks

◆ CATV Links

◆ FTTH terminal box

◆ PON Networks

Performance Specifications

Parameters	Specifications	Unit	Notes
Channel Number	1X8		Comply with RoHS requirement Insertion Loss tested without connector
Operation Wavelength	1260-1650	nm
Insertion Loss@1310/1550nm	≤10.6	dB
PDL@1310/1550nm	≤0.3	dB
Uniformity@1310/1550nm	≤0.8	dB
Return Loss@1310/1550nm	≥50	dB
Directivity@1310/1550nm	≥55	dB
Fiber Type	G657A1 or other types according to customer demand
Length	1.0	M
Connector Type	None or SC/LC/FC/ST
Package Dimension	(L)x(W)x(H)	mm
Operating Temperature	-40-+85	℃
Storage Temperature	-40-+85	℃

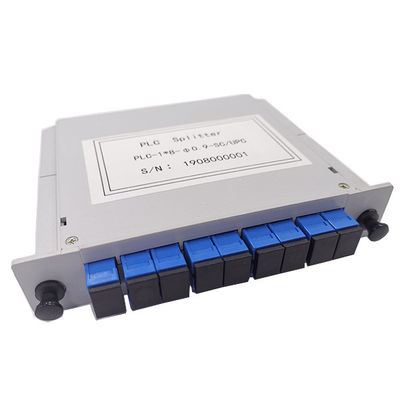

Light Weight LGX Box Type 1x8 Fiber Optic PLC Splitter 0

Product Advantages

◆ We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.

◆ We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.

◆ Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.

◆ Our service is qualified. We insist on responsive and knowledgeable service to each customer.

ORC QC Process Flow Chat

FAQ

1. Q: What's your average lead time?

A: Our lead time is controlled within 5 working days for the regular products.

2. Q: Can you produce according to the samples we send you?

A: Of course, we can produce according to your samples or technical drawings.
