Product Details:
|
| Type Mode: | SC/APC Connector | Insertion Loss: | ≤0.3DB |
|---|---|---|---|
| Return Loss: | ≥60DB | Cable Type: | 2.0*3.0mm |
| Fiber Mode: | Single Mode | Application: | FTTH Drop Cable,CATV ,CCTV,etc |
| High Light: | CE Ftth Fast Connector,Spiral Ftth Fast Connector,Spiral SC APC Connector |
||

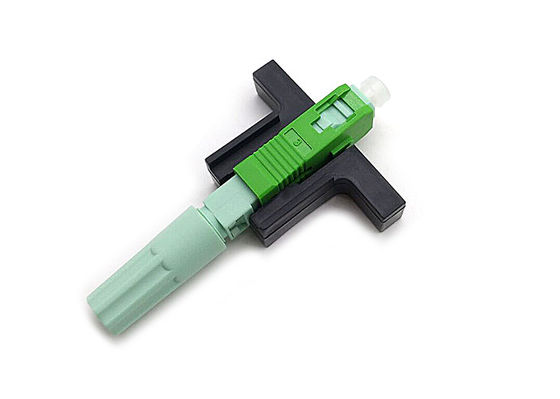

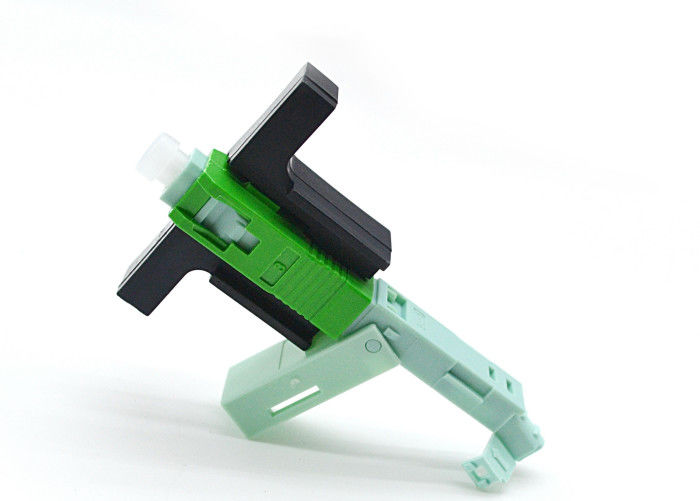

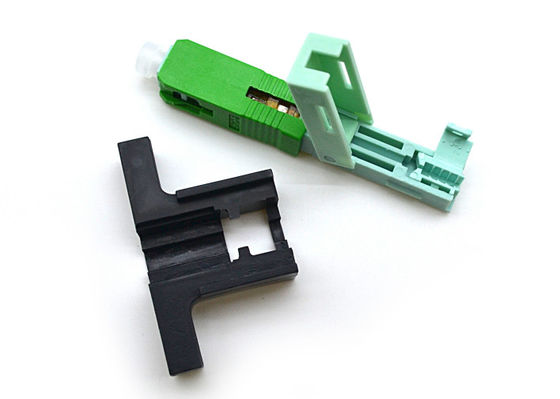

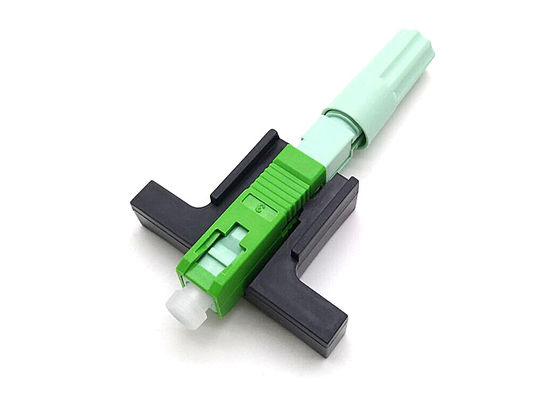

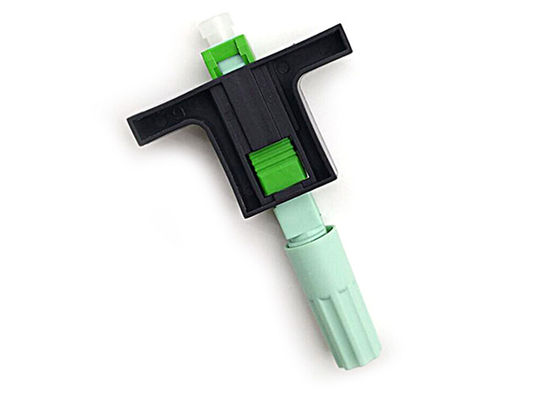

Spiral Types SC/APC Fiber Optic Fast Connector Quick Assembly Single Mode
Fast connector are factory pre-polished field-installable connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and proprietary index matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fiber. Fast connectors are compatible with 250um and 900um optical fiber as well as 900um, 2mm, 3mm and drop cable cordage. All primary fiber types are supported. and each connector is color per industry standard requirments to aid in identification during and afger installation. Incorporated in device is an innovation. Translucent wedge enabling the use of a common VFI to provide a "pass/fail" signal once physical contact is achieved.
1. Features of Fiber Optic SC Fast Connector for FTTH
-Precise Mechanical Dimensions
-Low Insertion Loss,
High Return Loss
-Comply standard of IEC61754-4
-High Repeatability
2. Applications of Fiber Optic SC Fast Connector for FTTH
- Premise envirinments
- Connections at the desk for LAN environments
- Patch Panels
- Direct equipment termination
- Fiber to the Subscriber(FTTX)applications
- Repair/replacement requirements
- Equipment test leads
3.Technical Specs
| Item | Unit | Parameters |
| Insertion Loss | dB | ≤0.3(1310nm&1550nm) |
| Return Loss | dB | ≤55 |
| Bare Fiber Strength | N | >5 |
| Clad Strength | N | >10 |
| Tension | N | >50 |
| Tensile strength(20N) | dB | IL≤0.2&RL≤5 |
| Mechanical durability(500times) | dB | IL≤0.2&RL≤5 |
| Operating Temperature | °c | minus5~70 |
| Storage Temperature | °c | minus40~+85 |
