Product Details:
|
| Model Number: | SC-UPC-5204 | Product Name: | SC/UPC Fast Connector |
|---|---|---|---|
| Insert Loss: | 0.3dB | Return Loss: | 50dB |
| Length: | 52mm | Factory: | Yes |
| High Light: | Ftth Fiber Optic Quick Connector,52mm Fiber Optic Quick Connector,SC UPC Fiber Optic Quick Connector |
||

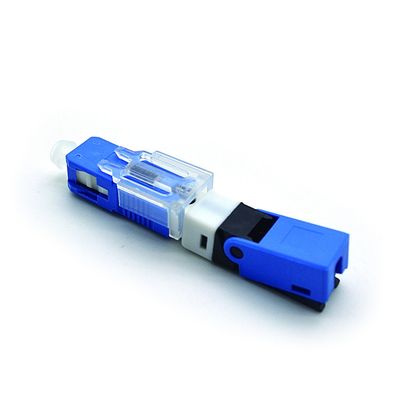

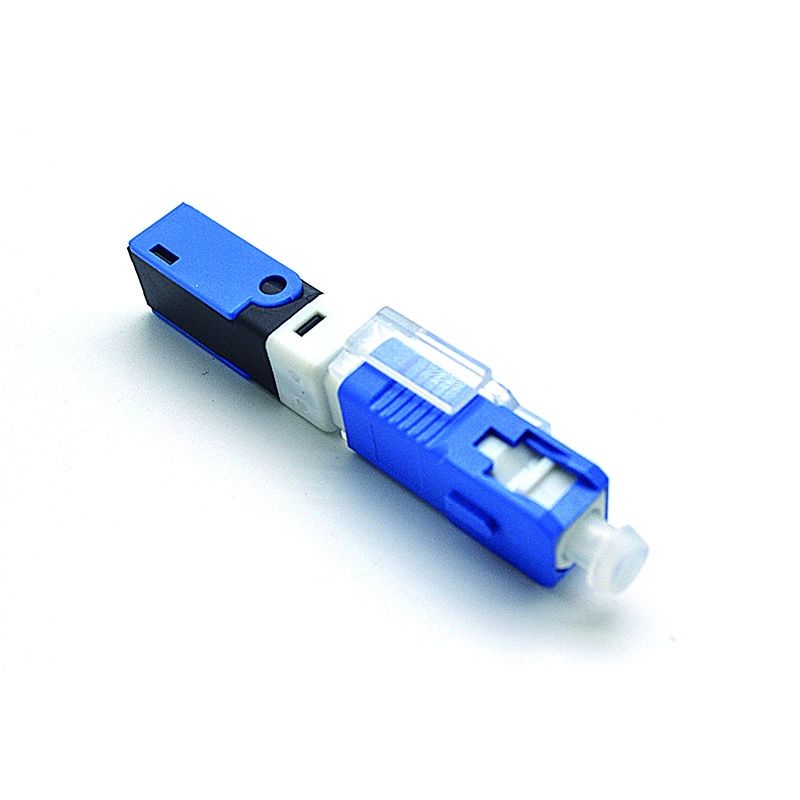

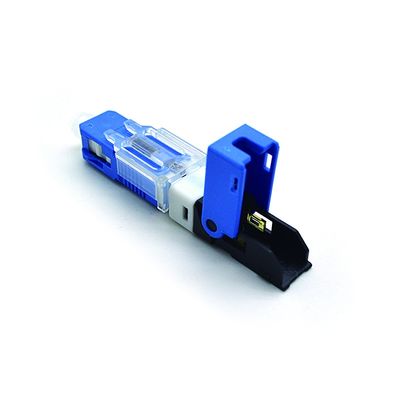

Single Mode Fiber Pptic Cable SC/UPC Connector Types for Ftth Field
In FTTH, optical drop cable should wind its way through the wall piping, and every
house owns different requirement of cable length, traditional factory patch cord become
very difficult to meet the FTTH.
Field assembly fast connector (quick connector) can perfect fulfill the custom cable length, it can be installed in field, no epoxy, no power deed, it can be installed in 2 minutes.
Carefiber month capacity is one million and there are many types for your choosing. please call us anytime in english or Chinese and we are
ready for order.
FEATURES:
FTTH project usable
Field installable
Insert loss No more than 0.5dB
Metal V-shape cavity work well in high and low temperature
Installation less than 1 minutes
Reliable and superior optical performance
Cable Tensile test complies with Telcordia GR-326-COR
OPTICAL CHARACTERISTICS:
| ITEM | Technical Parameters |
| Applicable for |
Drop cable / Indoor cable 0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable |
| Optical fiber diameter |
SM(9/125), MM(50/125, 62.5/125) 125μm ( 657A & 657B ) |
| Tight buffer diameter | 250μm |
| Fiber mode | Single mode |
| Operation time | About 100s(no fiber cut) |
| Insert loss | ≤ 0.3dB(1310nm & 1550nm) |
| Return loss | > 50db(PC), > 55db(UPC), > 65db(APC) |
| Fastening strength of naked fiber | >5 N |
| Fastening strength of naked fiber holder | >10 N |
| Tensile strength | >50 N |
| Using temperature | -40~+75°C |
| On-line tensile strength (20 N) | IL ≤ 0.5dB RL ≤ 5dB |
| Mechanical durability (500 times) | IL ≤ 0.5dB RL ≤ 5dB |
| Drop-off test (drop-off height 4m,once per direction, totally 3 times) | IL ≤ 0.3 |
One-stop solution and manufacturing from carefiber to ensure high quality and fast delviery.
Carefiber always focuses on reliable quality development. By complying with our quality policy"Continue to pursue excellent quality, offer the best products and services in order to realize customer needs and satisfaction", all along we strive for providing exceelent products and service to meet and exceed our cusotmer's need. Carefiber constantly works with modern quality management methods to ensure the whole service procedure in implemented flexibly and efficiently.
