Product Details:
|
Product Name: | Hot Melt Fast Connector | Connector Type: | SC |
---|---|---|---|
Insert Loss: | 0.3dB | Return Loss: | 50dB |
Endface Type: | APC/UPC | Application: | Drop Cable Or Indoor Cable |
Highlight: | SC UPC Fiber Optic Fast Connector,SC APC Fiber Optic Fast Connector,Hot Melt FTTH Fast Connector |

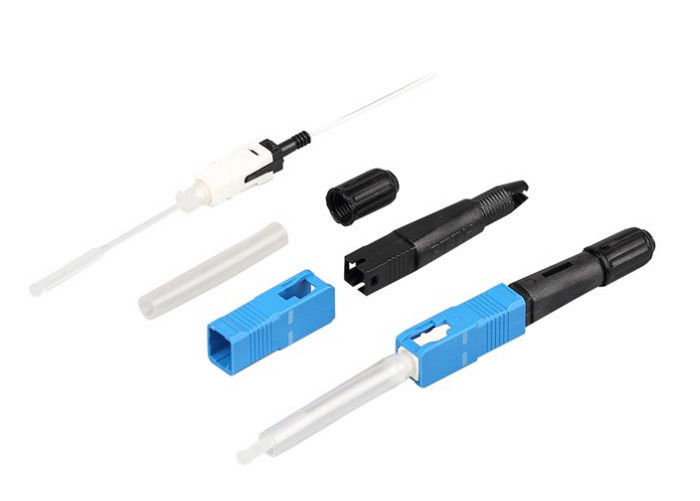

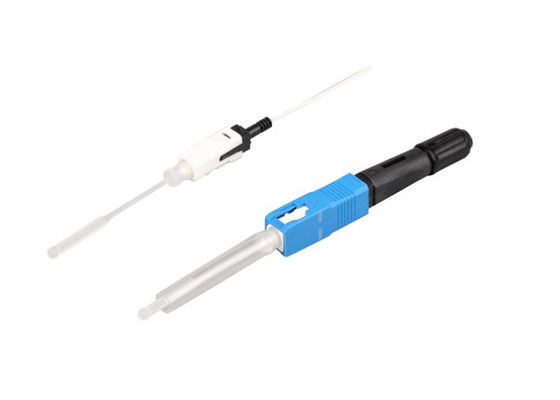

Hot-Melt Type Quick Assembly Connector SC/APC or SC/UPC
Fiber Optic Fast Connector designed for FTTH is a new generation of fiber connector used in assembly. It can provide Open flow and precast type of products, whose optical and mechanical specification meets the standard optical fiber connector.
It is designed for high quality and high efficiency for installation.
The structure of crimping position is a unique design, and need not gluing, polishing neither any consumables.
Adopted fiber preinstalled structure, and convenient for field installation.
Fast connector terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing.
The connectors mechanically couple and align the cores of fibers so light can pass.
Better connectors lose very little light due to reflection or misalignment of the fibers.
we supply the FC type, LC type, SC type and ST type fast connectors for FTTH drop cable, 0.9mm 2.0mm 3.0mm indoor cable. All our Fiber Optic Fast Connectors meet RoHS Compliant, and 100% test Insert loss before shipment.
Features:
Apply for FTTH optical fiber
Fast and live connecting
The same function as standard optical connector
Without redundant cable, easy management
One-stop solution and manufacturing from carefiber to ensure high quality and fast delviery.
Carefiber always focuses on reliable quality development. By complying with our quality policy"Continue to pursue excellent quality, offer the best products and services in order to realize customer needs and satisfaction", all along we strive for providing exceelent products and service to meet and exceed our cusotmer's need. Carefiber constantly works with modern quality management methods to ensure the whole service procedure in implemented flexibly and efficiently.
