Product Details:
|
| Product Name: | Fiber Adapter | Fiber Type: | SC Apc |
|---|---|---|---|
| Attenuation Value: | 10db | Return Loss: | ≥50db |
| PDL: | <0.1db | Operating Temperature: | -40℃~+80℃ |
| Warranty: | 1 Year | Application: | FTTH FTTB FTTX Network |
| High Light: | Fiber Optic Sc Apc Attenuator,5db Sc Apc Attenuator,2.0mm Fiber Optic Accessories |
||
Fiber Optic Attenuator Sc Apc SM Simplex 2.0mm 5db Fibre Optic Sc Attenuator
Description
Fiber optic attenuators are devices which reduce (attenuate) the strength of a fiber optic signal within a fiber optic network. Attenuators are usually used when the signal arriving at the receiver is too strong and hence may overpower the receiving elements. This may occur because of a mismatch between the transmitters/receivers (transceivers, media converters), or because the media converters are designed for a much longer distance than for which they are being used. Sometimes attenuators are also used for stress testing a network link by incrementally reducing the signal strength (increasing the dB attenuation) until the optical link fails, thus determining the signal's existing safety margin.
Our attenuators are a very high quality design using doped fiber to attenuate the signal. Our singlemode attenuators offer a operating wavelength range of 1250nm to 1600nm, covering both the common 1310nm and 1550nm operating wavelengths.
Maximum transmission power is typically one watt. We stock attenuators for the following fiber optic connector types: ST, SC, SC/APC, FC, FC/APC, LC, LC/APC, MU. Other connector type attenuators are available upon special order. We stock most values between 1dB and 25dB for each of these attenuator types.
Although fiber optic attenuators are normally used in singlemode circuits, because this is where the stronger lasers are used for distance transmission, we also have multimode attenuators available (upon special order) in 50/125 and 62.5/125 fiber sizes. Since these will be custom made, minimum order quantity (50+) and extended lead time (2-4 weeks) may be required.
Feature
Fixed Attenuator(Fixed Type FC, SC, ST, LC)
Female to male type ( FC, SC, ST, LC)
In-Line Attenuator(Fused and Fiber Jumpers Type)
High Return Loss(In-Line and High RL Type)
Exact and Stable Attenuation(Variable Type)
Low PDL and Low back reflection
High power endurance
Wavelength independent
Precise control of attenuation range
Wavelength Independent (DWDM);
Simple and Reliable Structure.
Specification
|
Item |
Parameter |
|
Model |
Fixed, Female&Male, In-line, Variable |
|
Operating Wavelength |
SM:1310/1550nm MM: 850/1300nm |
|
Attenuation Range |
1~30dB |
|
Return Loss |
PC:≥50dB UPC: ≥55dB APC: ≥60db |
|
Attenuation Tolerance |
≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB) |
|
Maximum Optical Input Power |
1000mW |
|
Polarization Dependent Loss |
≤0.1dB |
|
Working Temperature |
-40°C~+75°C |
|
Storage Temperature |
-40°C~+ 85°C |
|
Humidity |
95%RH |
Application
CATV Fiber Optic Sensor
Optic distribution frame
fiber optic network systemnsmission system
OADM
Fiber optical telecommunication system

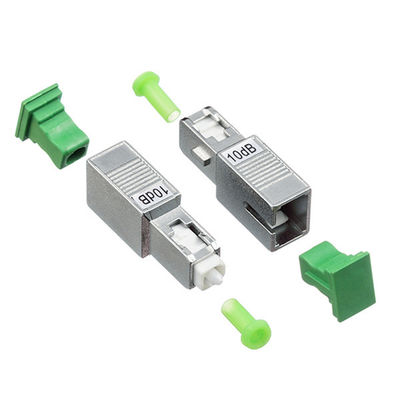

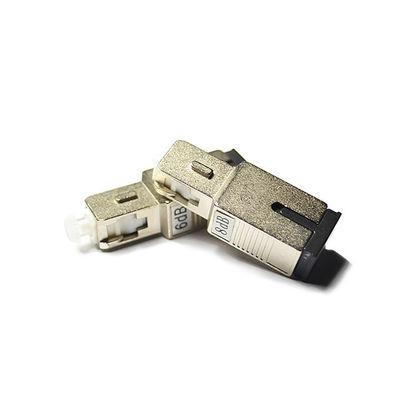

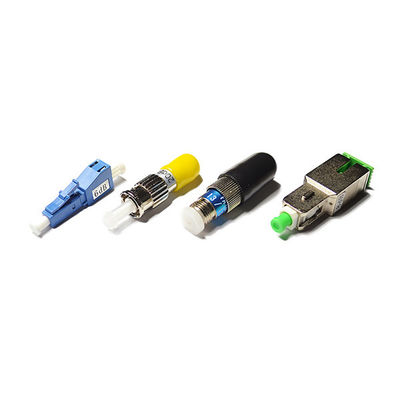

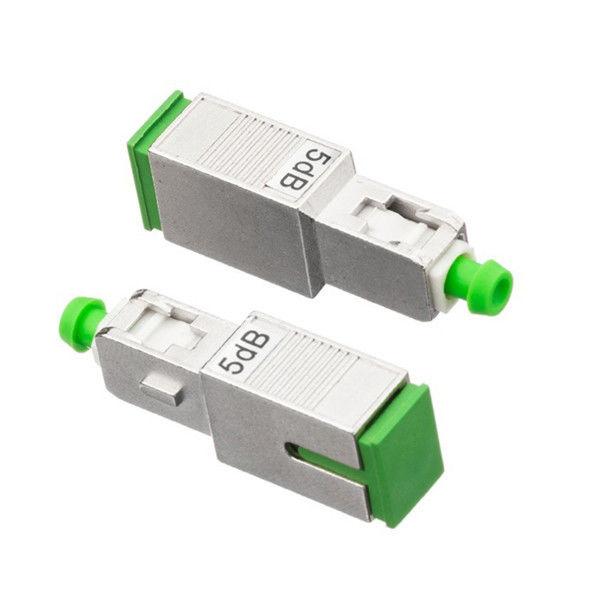

Product pictures
FAQ
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-6 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
