Product Details:
|
| Product Name: | Fiber Adapter | Fiber Type: | FC ST LC SC |
|---|---|---|---|
| Attenuation Value: | 0~50DB | Return Loss: | ≥50db |
| PDL: | <0.1db | Operating Temperature: | -40℃~+80℃ |
| Warranty: | 1 Year | Application: | FTTH FTTB FTTX Network |
| High Light: | ST LC SCFiber Optic Attenuator,LC SC Fiber Optic Attenuator,Fiber Optic Accessories FC SC |
||
Fiber Optic Attenuator 0~50DB FC ST LC SC Single Mode Variable Optical Attenuators
Description
Single Mode Variable Optical Attenuators allow the user to manually vary the attenuation of the signal in the fiber as it is transmitted through the device.
These VOAs can be used to to precisely balance the signal strengths in fiber circuits or to balance an optical signal when evaluating the dynamic range of the measurement system. The maximum specified attenuation is achieved within 10 turns of the adjustment screw.
All in-line VOAs have single mode fiber pigtails with a Ø3 mm jacket. The VOAs are offered unterminated or terminated with 2.0 mm narrow key LC/SC/ST/FC/PC or LC/SC/ FC/APC connectors.
Each attenuator has a lens to collimate the light from the input fiber. A blocking device or window can be manually adjusted by a screw
Then, a second lens is used to couple light into the output fiber. Thus, the coupling efficiency is changed until the desired attenuation is obtained.
Feature
Variable Attenuator(Fixed Type FC, SC, ST, LC)
Female to male type ( FC, SC, ST, LC)
In-Line Attenuator(Fused and Fiber Jumpers Type)
High Return Loss(In-Line and High RL Type)
Exact and Stable Attenuation(Variable Type)
Low PDL and Low back reflection
High power endurance
Wavelength independent
Precise control of attenuation range
Wavelength Independent (DWDM);
Simple and Reliable Structure.
Specification
| 1310nm | 1550nm | 1310/1550nm Duls Window | 850nm | |
| Wavelength(nm) | 1310nm+-40 | 1550nm+-40 |
1310nm+-40 & 1550nm+-40 |
850nm+-40 |
| Attenuation range(db) | 0.6 to 60db | 0.6 to 60db | 0.8 to 60db | 0.8 to 40db |
| Original loss(db) | ≤ 0.6db | ≤ 0.6db | ≤ 0.8db | ≤ 0.8db |
| Return Loss(db) | ≥ 50 db | ≥ 30 db | ||
| Fiber type | SMF-28e Single mode | 50/125 or 62.5/124 Multimode | ||
| PDL(db) | ≤ 0.15db | |||
| Operating Temp | 0 to +70 degree | |||
| Storage Temp | -40 to +85 degree | |||
Order Information
| Side 1 | Side 2 | Fiber | Cable Size | Wavelength | Jacket | Length | Adjustment |
| SC | SC | SM 9/125um | 0.9mm | 1. 1310nm | 1. PVC | Customized |
|
| ST | ST | MM 50/125um | 2.0mm | 2. 1550nm | 2. LSZH | ||
| FC | FC | MM 62.5/125 | 3.0mm | 3. 1310/1550nm | |||
| LC | LC | ||||||
| DIN | DIN | ||||||
| D4 | D4 | ||||||
| MU | MU | ||||||
| SC/APC | SC/APC | ||||||
| FC/APC | FC/APC | ||||||
| LC/APC | LC/APC | ||||||
| DIN/APC | DIN/APC |
Application
CATV Fiber Optic Sensor
Optic distribution frame
fiber optic network systemnsmission system
OADM
Fiber optical telecommunication system

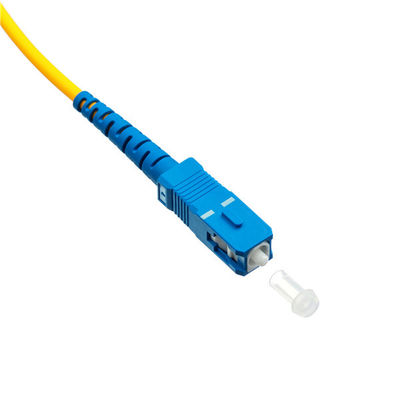

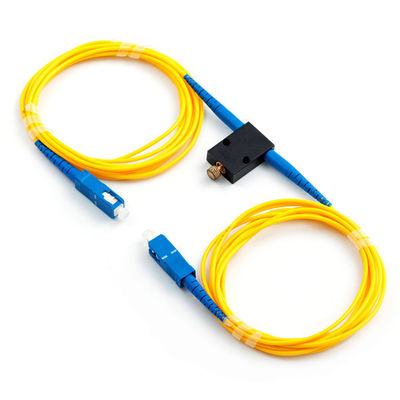

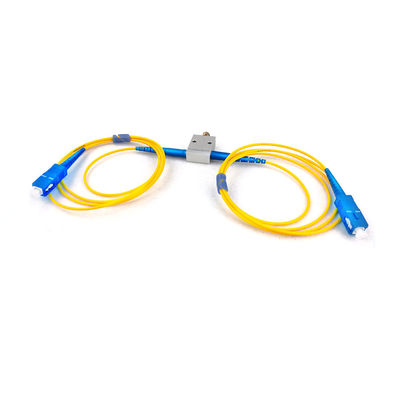

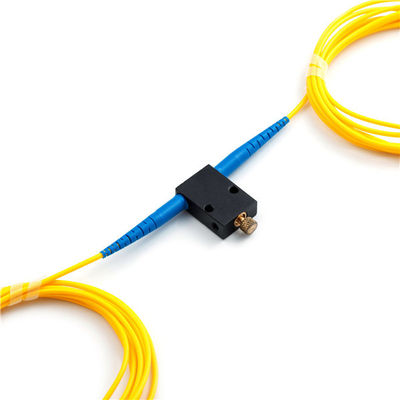

Product pictures
FAQ
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-6 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
