Product Details:
|
| Product Name: | Fiber Optic Cable Protection Sleeve | Type: | Heat Shrink |
|---|---|---|---|
| Length: | 40mm 60mm | Steel Size: | 1mm, 1.2mm, 1.5mm |
| Shrinking Emperature: | 110 ~ 130 | Constriction Diameter: | 2.0mm, 2.5mm, 3.0mm |
| Warranty: | 1 Year | Application: | FTTH FTTB FTTX Network |
| High Light: | 60mm Fiber Optic Cable Protection Sleeve,45mm fiber optic cable sleeve,ROHS Fiber Optic Cable Protection Sleeve |
||
Fiber Optic Heat Shrink Sleeves 45mm 60mm Fiber Optic Cable Protection Sleeve
Description
Fiber Optic cable protection Sleeve,Shrink tube,Fiber heat shrink tube,Optic Fiber heat sheink tube,Fiber heat shrink tube
Shrinkable sleeve is applied to the optical fiber closure to fix and protect the optical fiber when splicing.
The sleeve can be divided into two types(single and mass) according to the function. The single type is used for the single-fiber, and the mass type is used for the ribbon fiber. It is different in the reinforcement between two types. The single one realizes the reinforcement by the stainless steel needles, the later one via the ceramic reinforcement member to realize the function.Mass means there are several cores for the fiber. So the mass sleeve includes 4cores,6cores,8cores,12cores(for types).
Feature
Optical Fiber Heat Shrinkable Tube - 60mm
CE ROHS approved
Excellent reinforcement of fusion splicing portion
Reliable protection under any environment
Specification
| Shrinking Temperature (°C) | 110 ~ 130 |
| Radial Shrinking Rate (%) | >50 |
| Axial Shrinking Rate (%) | <10 |
| Low Temperature Property | No crackle at -55°C lasting 4 hours |
| Normal Operation Temperature (°C) | -55°C ~ + 135°C |
| Normal Operature Relative Humidity | ≤95% |
| Spark- over Strength (kV/mm) | ≥20 |
| Tensile Strength (Mpa) | 20 |
| Loss at -40°C | 0.03dB |
| Loss at +60°C RH95% | 0.02dB |
Application
1. Use the enhanced wire, hot-melt tube and cross-linked polylefin composition
2. Reconstruct the fiber coating
3. Junction to provide a good mechanical strength
4. Ensure good optical transmission properties

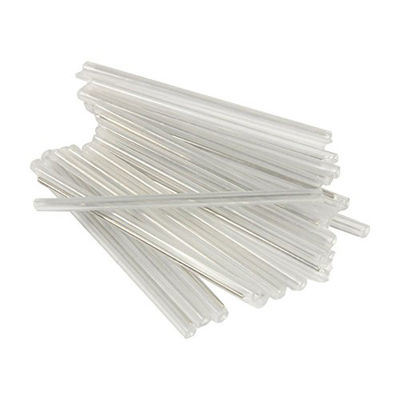

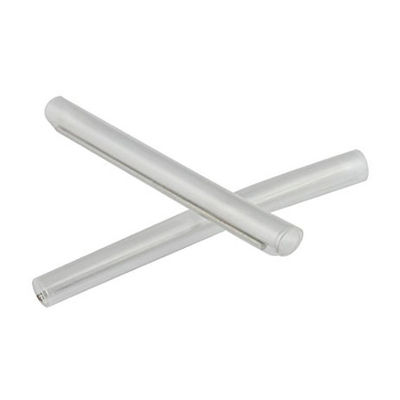

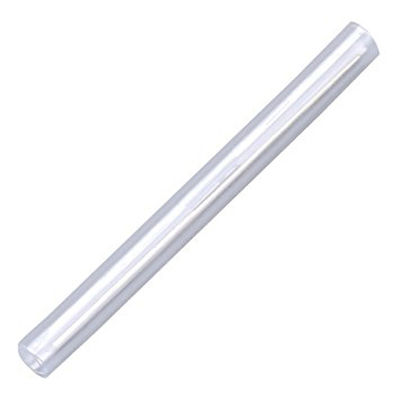

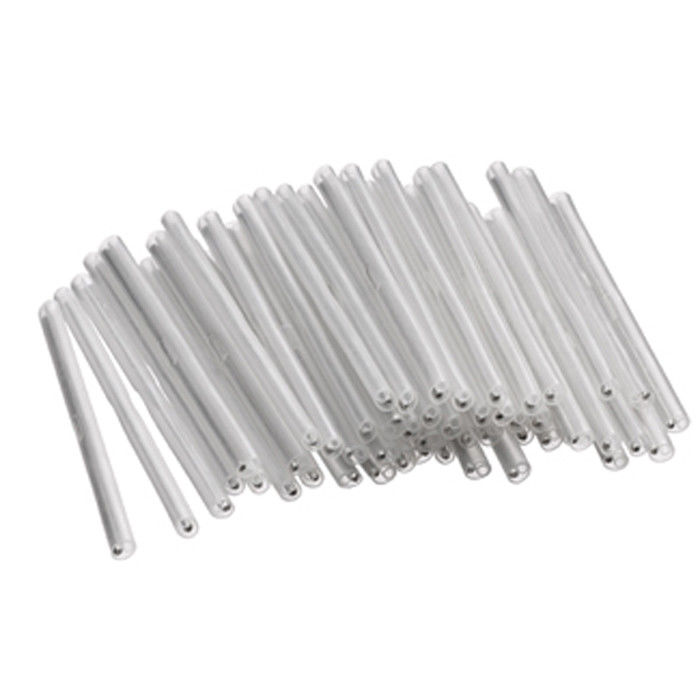

Product pictures
FAQ
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-6 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
