Product Details:
|
| Product Name: | 40G QSFP Transceiver | Wavelength: | 1310nm |
|---|---|---|---|
| Distance: | 10Km | Data Rate: | 10Gb/s |
| Interface: | Dual LC | Power Supply: | Single +3.3V |
| Warranty: | 3 Years | Application: | Ethernet,Fiber Channel,Switch To Switch Interface |
| High Light: | Sfp Fiber Optic Transceiver,1310NM Fiber Optic Transceiver,QSFP Fiber Optic Transceiver |
||

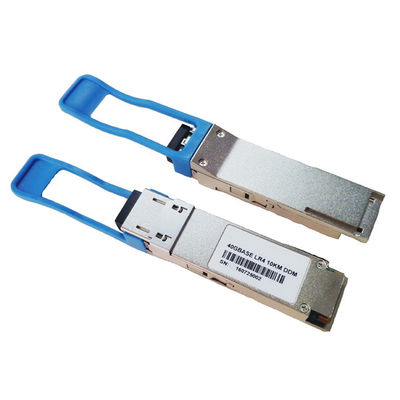

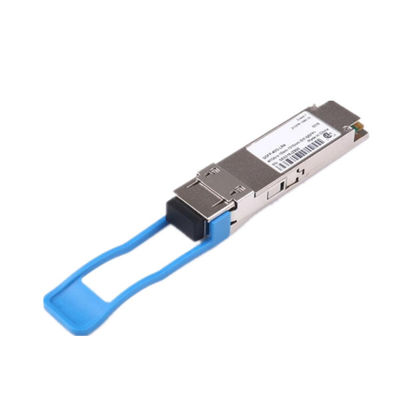

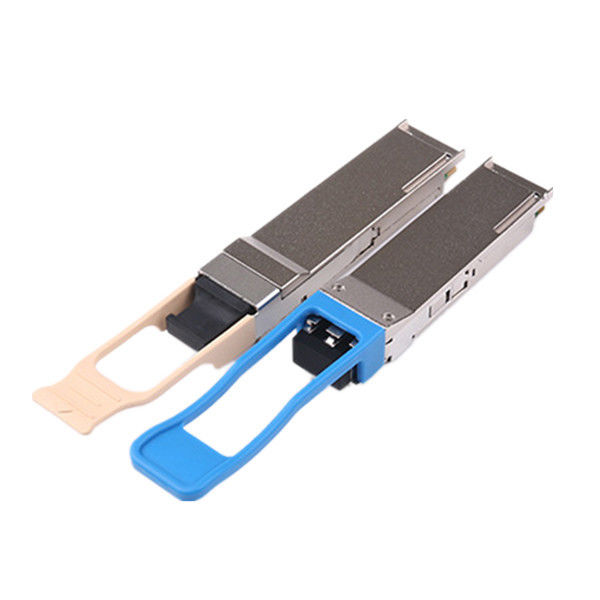

40G QSFP PSM LR4 is a parallel 40Gb/s Quad Small Form-factor Pluggable (QSFP+) optical module. Itprovides increased port density and total system cost savings. The QSFP+ full-duplex optical module offers 4 independent transmit and receive channels, each capable of 10Gb/s operation for an aggregate data rate of 40Gb/s on 10km of single mode fiber.
An optical fiber ribbon cable with an MTP/MPO connector can be plugged into the QSFP+ module receptacle. Proper alignment is ensured by the guide pins inside the receptacle. The cable usually cannot be twisted for proper channel to channel alignment. Electrical connection is achieved through a z-pluggable 38-pin connector per MSA requirement.
Features
Parameter
| Package (Form Factor) | QSFP+ |
| Data Rate (typical) | 10.3 Gbps/CH |
| Centre Wavelength | 1310nm |
| Distance | 10km |
| Diagnostics | Digital Monitor |
| Transmitter | 4CH 1310nm DFB Laser |
| Receiver | 4CH PIN photo detector Array |
| TX Output Power (dBm) | -5.5~+1.5 |
| RX Sensitivity (dBm) | -12.6 |
| Low/High Case Temperature | 0°C~70°C |
| Voltage Supply (typical) | 3.3v |
| Connector | MTP/MPO 8-degree SMF Without PIN |
| Parameter | Symbol | Min | Typical | Max | Unit | Notes | |
| Transmitter | |||||||
| Center Wavelength | λC | 1270 | 1310 | 1350 | nm | 1 | |
| RMS Spectral Width | λrms | 3.5 | nm | 1 | |||
| Average Launch Power, each lane | PAVG | -5.5 | -0.5 | +2.3 | dBm | ||
| Optical Modulation Amplitude (OMA) | POMA | -4.5 | -0.5 | +3.5 | dBm | 1 | |
| Difference in Launch Power between any two lanes | Ptx,diff | 5.0 | dB | ||||
| Launch Power in OMA minus Transmitter and Dispersion Penalty (TDP), each Lane | OMA-TDP | -9.7 | dBm | 1 | |||
| Rise/Fall Time | Tr/Tf | 50 | ps | ||||
| Extinction Ratio | ER | 3.5 | dB | ||||
| Relative Intensity Noise | Rin | -128 | dB/Hz | ||||
| Optical Return Loss Tolerance | TOL | 12 | dB | ||||
| Transmitter Reflectance | RT | -12 | dB | ||||
| Transmitter Eye Mask Margin | EMM | 10 | % | 2 | |||
| Transmitter Eye Mask Definition {X1, X2, X3, Y1, Y2, Y3} | {0.25, 0.4, 0.45, 0.25, 0.28, 0.4} | ||||||
| Average Launch Power OFF Transmitter, each Lane | Poff | -30 | dBm | ||||
| Receiver | |||||||
| Center Wavelength | λC | 1270 | 1310 | 1350 | nm | ||
| Damage Threshold | THd | +3 | dBm | ||||
| Overload, each lane | OVL | +1 | dBm | ||||
| Receiver Sensitivity in OMA, each Lane | SEN | -12.5 | dBm | ||||
| Difference in Receive Power between any two Lanes (OMA) | Prx,diff | 5.0 | dB | ||||
| Signal Loss Assert Threshold | LOSA | -30 | dBm | ||||
| Signal Loss Deassert Threshold | LOSD | -15 | dBm | ||||
| LOS Hysteresis | LOSH | 0.5 | 6 | dB | |||
| Optical Return Loss | ORL | -12 | dBm | ||||
| Receive Electrical 3 dB upper CutoffFrequency, each Lane | Fc | 12 | GHz | ||||
Notes:
1. Transmitter wavelength, RMS spectral width and power need to meet the OMA minus TDP specs to guarantee link performance.
2. The eye diagram is tested with 1000 waveform.
