Product Details:
|
Product Name: | 100G QSFP28 | Data Rate: | 100Gb/s |
---|---|---|---|
Wavelength: | 1310nm | Distance: | 10Km |
Interface: | Dual LC | Power Supply: | Single +3.3V |
Warranty: | 3 Years | Application: | Ethernet,Fiber Channel,Switch To Switch Interface |
High Light: | LR4 Wdm Sfp Module,DDM Wdm Sfp Module,QSFP28 Sfp Fiber Transceiver |

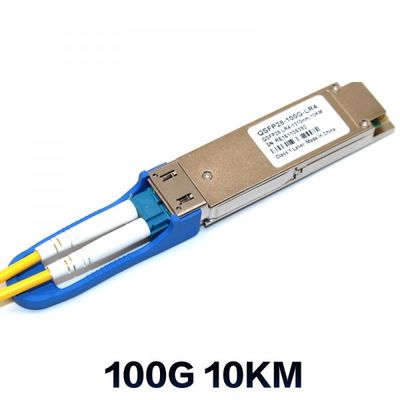

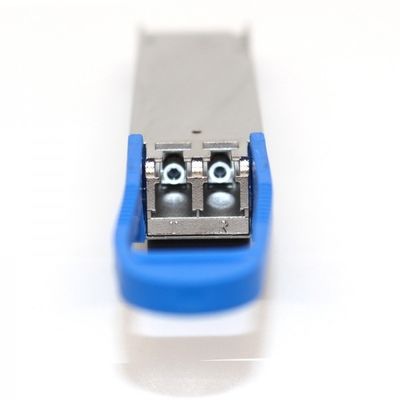

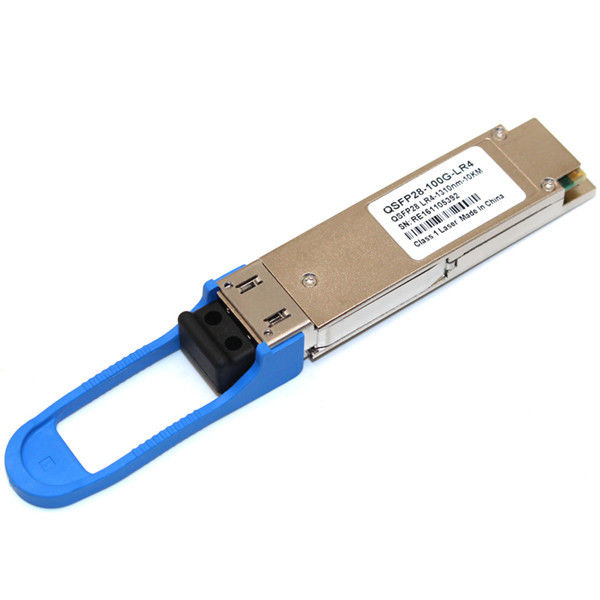

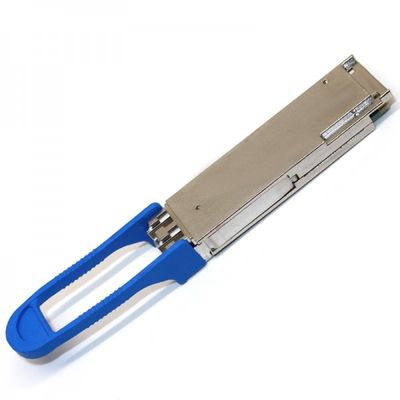

The 100G QSFP28 LR4 optical receiver integrates receive path onto one module. The receiver four lanes of optical data streams are optically demultiplexed by an integrated optical demultiplexer. Each data steam is recovered by a PIN photodetector and transimpedance amplifier, retimed, and passed on to an output driver. This module features a hot-pluggable electrical interface, low power consumption, and 2-wire serial interface.
Features
Absolute Maximum Ratings
Parameter | Symbol | Min. | Max. | Unit | Note |
Supply Voltage | Vcc | -0.5 | 3.6 | V | |
Storage Temperature | TS | -40 | 85 | °C | |
Relative Humidity | RH | 0 | 85 | % | |
Rx Damage Threshold,per Lane | PRdmg | 5.5 | dBm |
Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.
Recommended Operating Conditions
Electrical Characteristics (Top=0~70℃, Vcc=3.14~3.47V)
(Tested under recommended operating conditions,unless otherwise noted)
Parameter | Symbol | Min | Typ | Max | Unit | Notes | ||
Receiver | ||||||||
Signaling rate per lane | DRPL | 25.78125 ± 100 ppm | Gb/s | |||||
Differential data output swing | Vout,pp | 400 | 800 | mV | ||||
Eye width | Ew | 0.57 | UI | |||||
Vertical eye closure | 5.5 | dB | ||||||
Differential output return loss (min) | RLd(f) |
9.5 – 0.37f, 0.01≤f<8 4.75 – 7.4log10(f/14), 8 ≤f<19
|
dB | |||||
Common to differential mode conver- sion return loss (min)
|
RLdc(f) |
22-20(f/25.78), 0.01≤f<12.89 15-6(f/25.78), 12.89≤f<19
|
dB | |||||
Differential termination mismatch | Tm | 10 | % | |||||
Transition time, 20% to 80% | Tr,Tf | 12 | ps |
Optical Characteristics (Top=0~70℃, Vcc=3.14~3.47V)
(Tested under recommended operating conditions,unless otherwise noted)
Parameter | Symbol | Unit | Min | Typ | Max | Notes | ||||
Receiver | ||||||||||
Receive Rate for Each Lane | Gb/s | 25.78125 ±100 ppm | 1 | |||||||
Four Lane Wavelength Range | λ1 | nm | 1294.53 | 1295.56 | 1296.59 | |||||
λ2 | 1299.02 | 1300.05 | 1301.09 | |||||||
λ3 | 1303.54 | 1304.58 | 1305.63 | |||||||
λ4 | 1308.09 | 1309.14 | 1310.19 | |||||||
Overload Input Optical Power | Pmax | dBm | 5.5 | |||||||
Average Receive Power for Each Lane |
Pin | dBm | -10.6 | 4.5 | 2,4 | |||||
Receiver Sensitivity(OMA)per lane | Psens1 | dBm | -10.6 | |||||||
Stressed Sensitivity(OMA) per lane | Psens2 | dBm | -6.8 | 3 | ||||||
Return Loss | RL | dB | -26 | |||||||
Receiver Electrical 3dB upper cutoff frequency, per lane | GHz | 31 | ||||||||
Los De-Assert | Pd | dBm | -11.6 | |||||||
Los Assert | Pa | dBm | -23.6 | |||||||
Loss Hysteresis | Pd-Pa | dBm | 2 |
Notes:
1. Receiver consists of 4 photodetectors operating at 25.78Gb/s each.
2. Minimum value is informative, equals min TxOMA with infinite ER and max channel insertion loss.
3. SRS is measured with vertical eye closure penalty of 1.8 dB max, J2 of 0.30 UI, and J9 of 0.47 UI.
4. Power value and power accuracy are with all channels on..
Pin | Name | Logic | Description | |
1 | GND | Ground | 1 | |
2 | Tx2n | CML-I | NC | 10 |
3 | Tx2p | CML-I | NC | 10 |
4 | GND | Ground | 1 | |
5 | Tx4n | CML-I | NC | 10 |
6 | Tx4p | CML-I | NC | 10 |
7 | GND | Ground | 1 | |
8 | ModSelL | LVTTL-I | Module Select | 3 |
9 | ResetL | LVTTL-I | Module Reset | 4 |
10 | Vcc Rx | +3.3V Power Supply Receiver | 2 | |
11 | SCL | LVCMOS-I/O | 2-wire serial interface clock | 5 |
12 | SDA | LVCMOS-I/O | 2-wire serial interface data | 5 |
13 | GND | Ground | 1 | |
14 | Rx3p | CML-O | Receiver Non-Inverted Data Output | 9 |
15 | Rx3n | CML-O | Receiver Inverted Data Output | 9 |
16 | GND | Ground | 1 | |
17 | Rx1p | CML-O | Receiver Non-Inverted Data Output | 9 |
18 | Rx1n | CML-O | Receiver Inverted Data Output | 9 |
19 | GND | Ground | 1 | |
20 | GND | Ground | 1 | |
21 | Rx2n | CML-O | Receiver Inverted Data Output | 9 |
22 | Rx2p | CML-O | Receiver Non-Inverted Data Output | 9 |
23 | GND | Ground | 1 | |
24 | Rx4n | CML-O | Receiver Inverted Data Output | 9 |
25 | Rx4p | CML-O | Receiver Non-Inverted Data Output | 9 |
26 | GND | Ground | 1 | |
27 | ModPrsL | LVTTL-O | Module Present | 6 |
28 | IntL | LVTTL-O | Interrupt | 7 |
29 | Vcc Tx | +3.3V Power supply transmitter | 2 | |
30 | Vcc1 | +3.3V Power supply | 2 | |
31 | LPMode | LVTTL-I | Low Power Mode | 8 |
32 | GND | Ground | 1 | |
33 | Tx3p | CML-I | NC | 10 |
34 | Tx3n | CML-I | NC | 10 |
35 | GND | Ground | 1 | |
36 | Tx1p | CML-I | NC | |
37 | Tx1n | CML-I | NC | 10 |
38 | GND | Ground | 1 |
Standards
Compliant with IEEE 802.3ba
Compliant with QSFP28 MSA hardware specifications
Compliant with RoHS
100GBASE-LR4
Infiniband QDR and DDR interconnects
100G Datacom connections
