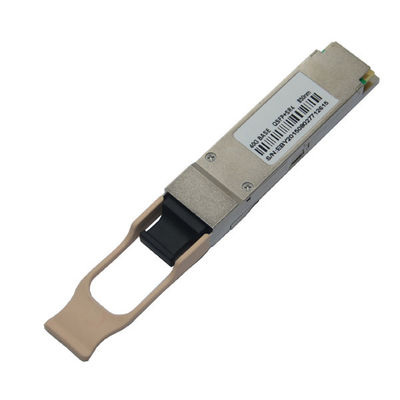

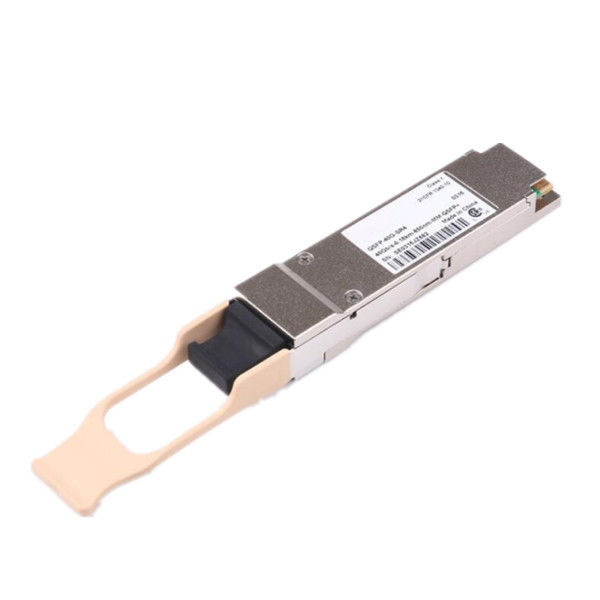

QSFP 40G SR4 Multimode 100M MPO Fiber Optic Transceiver

Description
Product Name: 40G QSFP Transceiver Wavelength: 850nm
Distance: 100m Data Rate: 40Gb/s
Interface: Single MPO Connector Power Supply: Single +3.3V
Warranty: 3 Years Application: Ethernet,Fiber Channel,Switch To Switch Interface
High Light:

MPO Fiber Optic Transceiver

,

100M Fiber Optic Transceiver

,

Multimode qsfp optical transceiver

QSFP 40G SR4 Fiber Optic Module , Sfp Transceiver Multimode 100M MPO 850nm
Description

40G QSFP PSM LR4 is a parallel 40Gb/s Quad Small Form-factor Pluggable (QSFP+) optical module. Itprovides increased port density and total system cost savings. The QSFP+ full-duplex optical module offers 4 independent transmit and receive channels, each capable of 10Gb/s operation for an aggregate data rate of 40Gb/s on 10km of single mode fiber.



An optical fiber ribbon cable with an MTP/MPO connector can be plugged into the QSFP+ module receptacle. Proper alignment is ensured by the guide pins inside the receptacle. The cable usually cannot be twisted for proper channel to channel alignment. Electrical connection is achieved through a z-pluggable 38-pin connector per MSA requirement.



Features



  1. 4 channels full-duplex transceiver modules
  2. Transmission data rate up to 10.5Gbps per channel
  3. 4 channels 850nm VCSEL array
  4. 4 channels PIN photo detector array
  5. Low power consumption <1.5W
  6. Hot Pluggable QSFP form factor
  7. Maximum link length of 100m on OM3 Multimode Fiber (MMF)and 150m on OM4 MMF
  8. Single MPO connector receptacle
  9. Built-in digital diagnostic functions
  10. Operating case temperature 0°C to +70°C
  11. 3.3V power supply voltage
  12. RoHS 6 compliant(lead free)



Parameter

Package (Form Factor) QSFP+
Data Rate (typical) 10.3 Gbps/CH
Centre Wavelength 850nm
Distance 100m on OM3 MMF
Diagnostics Digital Monitor
Transmitter 4CH VCSEL Array Laser
Receiver 4CH PIN photo detector Array
TX Output Power (dBm) -7.5~+2.5
RX Sensitivity (dBm) -9.5
Low/High Case Temperature 0°C~70°C
Voltage Supply (typical) 3.3v
Connector MTP/MPO 8F MMF Without PI





Specification
Parameter Symbol Min Typical Max Unit Notes
Transmitter
Center Wavelength λC 1270 1310 1350 nm 1
RMS Spectral Width λrms     3.5 nm 1
Average Launch Power, each lane PAVG -5.5 -0.5 +2.3 dBm
Optical Modulation Amplitude (OMA) POMA -4.5 -0.5 +3.5 dBm 1
Difference in Launch Power between any two lanes Ptx,diff     5.0 dB
Launch Power in OMA minus Transmitter and Dispersion Penalty (TDP), each Lane OMA-TDP -9.7     dBm 1
Rise/Fall Time Tr/Tf     50 ps
Extinction Ratio ER 3.5     dB
Relative Intensity Noise Rin     -128 dB/Hz
Optical Return Loss Tolerance TOL     12 dB
Transmitter Reflectance RT     -12 dB
Transmitter Eye Mask Margin EMM 10     % 2
Transmitter Eye Mask Definition {X1, X2, X3, Y1, Y2, Y3}   {0.25, 0.4, 0.45, 0.25, 0.28, 0.4}
Average Launch Power OFF Transmitter, each Lane Poff     -30 dBm
Receiver
Center Wavelength λC 1270 1310 1350 nm
Damage Threshold THd +3     dBm
Overload, each lane OVL +1     dBm
Receiver Sensitivity in OMA, each Lane SEN     -12.5 dBm
Difference in Receive Power between any two Lanes (OMA) Prx,diff     5.0 dB
Signal Loss Assert Threshold LOSA -30     dBm
Signal Loss Deassert Threshold LOSD     -15 dBm
LOS Hysteresis LOSH 0.5   6 dB
Optical Return Loss ORL     -12 dBm
Receive Electrical 3 dB upper CutoffFrequency, each Lane Fc     12 GHz

Notes:

1. Transmitter wavelength, RMS spectral width and power need to meet the OMA minus TDP specs to guarantee link performance.

2. The eye diagram is tested with 1000 waveform.



Applications
  • 40GBASE-SR4 40G Ethernet
  • Datacom/Telecom switch & router connections
  • Data Aggregation and Backplane Applications
  • Proprietary Protocol and Density Applications
  • Infiniband transmission at 4ch SDR, DDR and QDR

Order Information

Part Number Product Description
QSFP-SR4 850nm, 40G, 150m, 0ºC ~ +70ºC
QSFP-CSR4 850nm, 40G, 400m, 0ºC ~ +70ºC
QSFP-LR4

1310nm, 40G, 10km, 0ºC ~ +70ºC

10GQSFP-CA-1M 10G, copper with 1M optical cable
