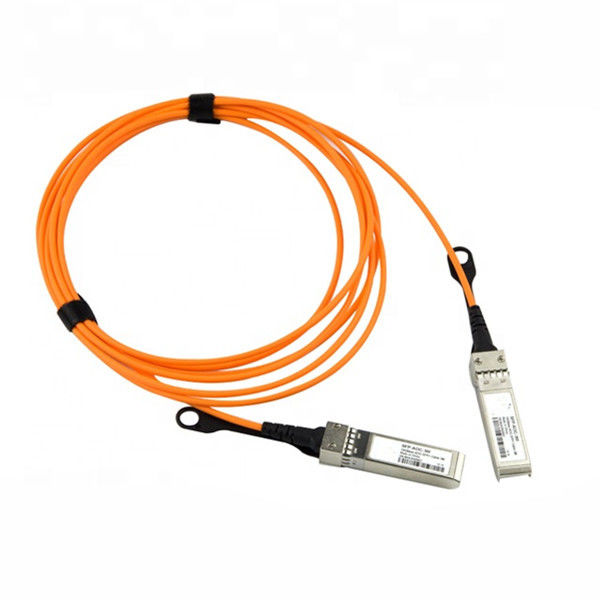

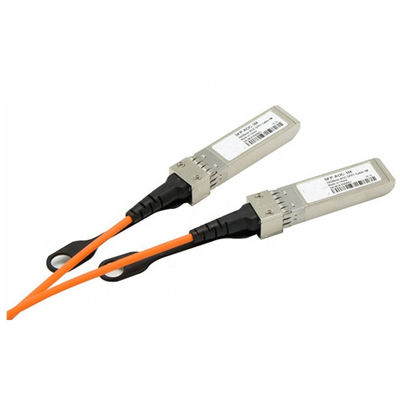

Product Details:
|
| Product Name: | AOC Cable | Transmission Distance: | Optional |
|---|---|---|---|
| Data Rate: | 10Gb/s | Interface: | Lc |
| Power Supply: | Single +3.3V | Lead Time: | 3-5working Days |
| Warranty: | 3 Years | Application: | Ethernet,Fiber Channel,Switch To Switch Interface |
| High Light: | AOC Active Optical Cable,SFP+ Active Optical Cable,ISO9001 AOC Cable |
||
2. The SFP+ module electrical interface is compliant to SFI electrical specifications.
4. The transmitter input and receiver output impedance is 100 Ohms differential.
5. Data lines are internally AC coupled.
6. The module provides differential termination and reduce differential to common mode conversion for quality signal termination and low EMI.
7. SFI typically operates over 200 mm of improved FR4 material or up to about 150mm of standard FR4 with one connector.
|
|
Unit |
Values |
|
Operating Reach |
m |
10K |
|
Transmit |
||
|
Center wavelength (range) |
nm |
1260 -1355 |
|
Side Mode Suppression Ratio (min) |
dB |
30 |
|
Launched power |
||
|
– maximum |
dBm |
+0.5 |
|
– minimum |
dBm |
-8.2 Notes1 |
|
- OMA |
dBm |
-5.2 |
|
- OMA-TDP (min) |
dBm |
-6.2 |
|
Transmitter and dispersion penalty |
dB |
0 Notes4 |
|
Average launch power of OFF transmitter (max) |
dBm |
-30 |
|
Extinction ratio (min) |
dB |
3.5 Notes2 |
|
RIN12 OMA (max) |
dB/Hz |
-128 |
|
Optical Return Loss Tolerance (min) |
dB |
12 |
|
Receiver |
||
|
Center wavelength (range) |
nm |
1260-1355 |
|
Receive overload (max) in average power1 |
dBm |
0.5 |
|
Receive sensitivity (min) in average power1 |
dBm |
-14.4 Notes3 |
|
Receiver sensitivity (max) in OMA (footnote 2) |
dBm |
-12.6 Notes3 |
|
Receiver Reflectance (max) |
dB |
-12 |
|
Stressed receiver sensitivity (max) in OMA2 |
dBm |
-10.3 |
|
Vertical eye closure penalty (min)3 |
dB |
2.2 |
|
Stressed eye jitter (min)2 |
UIp-p |
0.7 |
|
Receive electrical 3dB upper cutoff frequency (max) |
GHz |
12.3 |
|
Receiver power (damage, Max) |
dBm |
1.5 |
FAQ
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-6 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
