50dB Multimode Fiber Optic Connector , Fast Connector Sc Apc

I'm Online Chat Now

50dB Multimode Fiber Optic Connector , Fast Connector Sc Apc

50dB Multimode Fiber Optic Connector , Fast Connector Sc Apc
50dB Multimode Fiber Optic Connector , Fast Connector Sc Apc 50dB Multimode Fiber Optic Connector , Fast Connector Sc Apc

Large Image :  50dB Multimode Fiber Optic Connector , Fast Connector Sc Apc

Product Details:
Place of Origin: china
Brand Name: OEM
Certification: Rohs SGS ISO9001:2008
Model Number: OEM
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Packaging Details: 10pcs in blister bag
Delivery Time: 2days for samples, 7-15days for bulk order
Payment Terms: L/C, T/T, Western Union, Payapl
Supply Ability: 10000pcs/day

50dB Multimode Fiber Optic Connector , Fast Connector Sc Apc

Description
Model Number: SC APC Insert Loss: Max<=0.5dB ,Average<=0.3dB
Return Loss: >= 50dB Cable Type: 2x3mm Drop Cable

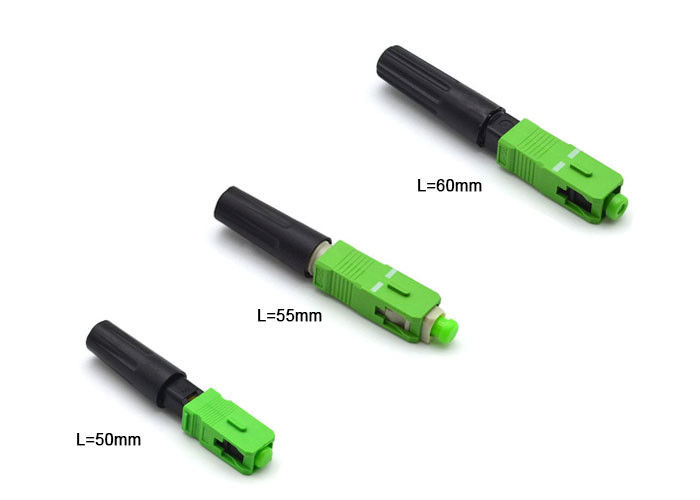

Connector Length: 50mm .55mm ,60mm Connector Structure: Pre -embeded Type
Fiber Type: SM Or MM Connector Color: Green
High Light:

50dB Multimode Fiber Optic Connector

,

50dB Fast Connector Sc Apc

,

Multimode Fast Connector Sc Apc

FTTH Drop Cable Fiber Optic Fast Connector Pre - Polished 50mm Made On - Site



The Fast Connector also is called "Field Assembly Connector" or "Field terminated fiber connector" or "quickly assembly Fiber connector". It is designed for simple and fast field termination of single fibers, without polishing or epoxy. The unique design is a pre-polished ferrule and a mechanical splice inside the connector body.
Assembly of the SC type quick connector requires only normal fiber preparation tools: a fiber stripping tool, wipes and a fiber cleaver. No electrical power supply is needed.
Our Fast Connector series connectors are now available in FC, SC and LC variants, catering for 250um to 900um diameter single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with PC or APC ferrules.

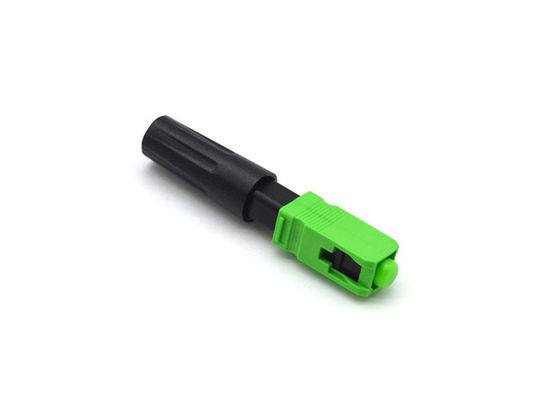

50dB Multimode Fiber Optic Connector , Fast Connector Sc Apc 0







1.  Features:



1) Factory-installed fiber stub.
2) No epoxy and polishing required, No special tools needed when installed.
3) Allows up to three re-termination result.
4) Easily installed, Quick and easy fiber termination in the field.
5) Only 30 seconds needed to learn the process of installation and making.
6) Cost effective, Warranty: One year.
7) Fast connecting and repeat, No special tools needed when installed.
8) Can be made on-site without splicing connectors.
9) Eliminates cable excess length and pigtail splice storage.
10) Can be intalled and maked repeatedly thus avoiding loss



2. Applications:



1. Optical fiber communication room
2. Coss connecting cabinet
3. CATV
4. NET EPON
5. FTTB/FTTH
6. Networkcabinet



3. Specifications:



Parameter
Item Parameter
Single-Mode Multi-Mode
Insertion Loss Max<=0.5dB ,Average<=0.3dB
Return Loss >=45dB
Durability (1000 Mating) 0.2dB Max.
Operating Temperature -40°C~+75°C
Storage Temperature -40°C~+85°C
Remark: Ferrule Concentricity SM< 1um; MM< 1.4um Ferrule inner diameter tolerance +1/-0um Ferrule outer diameter tolerance +/-0.5 um



50dB Multimode Fiber Optic Connector , Fast Connector Sc Apc 1



4. Installation with drop cable



50dB Multimode Fiber Optic Connector , Fast Connector Sc Apc 2





5. Producing and Quality control



50dB Multimode Fiber Optic Connector , Fast Connector Sc Apc 3
