Product Details:
|
| Model Number: | SCAPC Or SCUPC | Insert Loss: | Max<=0.5dB ,Average<=0.3dB |
|---|---|---|---|
| Return Loss: | APC >= 50dB ,UPC >=45dB | Cable Type: | 2 X3mm |
| Connector Length: | 54mm | Connector Structure: | Pre -embeded Type |
| Fiber Type: | SM Or MM | Connector Color: | Green |
| High Light: | SGS SC UPC Connector,SGS Fiber Optic Cable Connector,4mm Fiber Optic Cable Connector |
||

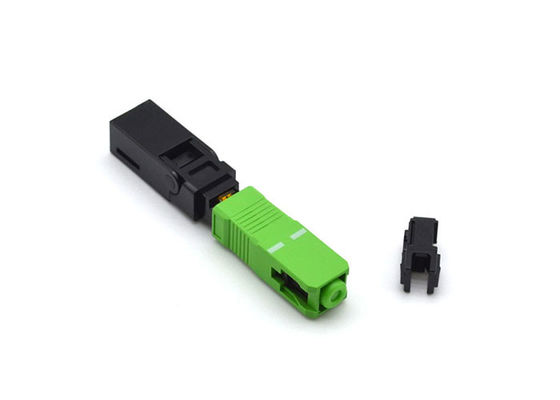

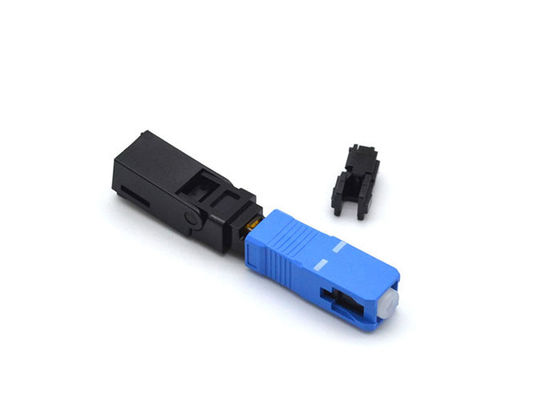

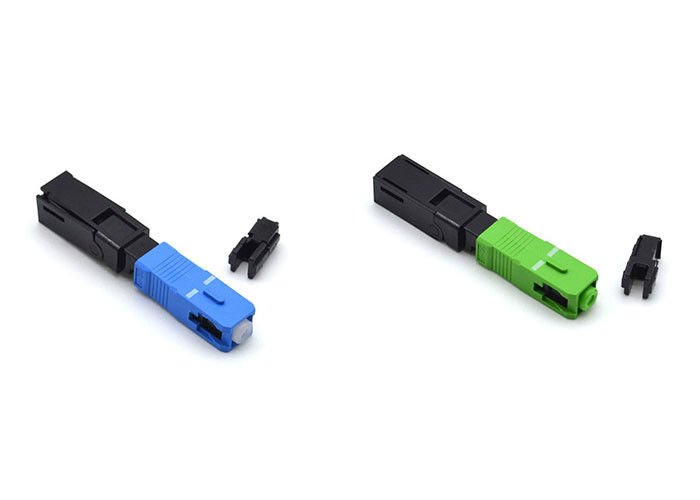

SC Fiber Optic Connector For FTTH Drop Cable 4mm Fiber Optic Cable Connector
The Fast Connector also is called "Field Assembly Connector" or "Field terminated fiber connector" or "quickly assembly Fiber connector". It is designed for simple and fast field termination of single fibers, without polishing or epoxy. The unique design is a pre-polished ferrule and a mechanical splice inside the connector body.
Assembly of the SC type quick connector requires only normal fiber preparation tools: a fiber stripping tool, wipes and a fiber cleaver. No electrical power supply is needed.
Our Fast Connector series connectors are now available in FC, SC and LC variants, catering for 250um to 900um diameter single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with PC or APC ferrules.
1. Features:
This Fast Connectors feature a pre-stubbed factory-polished ferrule that couples to the fiber being terminated. Precision mechanical alignment insures low loss with a proprietary gel.
Connector Type: SC
Fiber Application: Singlemode, Multimode
Fiber Type: Simplex
Number of Fibers: 1
Maximum Cable Diameter (mm):2X3mm
Connector Ferrule: Ceramic
2. Specifications:
| Parameter | |||||||||||||||||||||||
|
|||||||||||||||||||||||
We sincerely invite all interested buyers to visit our company and contact us directly for further information. we will reply you as soon as possible!!!
Carefiber, Care you life.
