Product Details:
|
| Type: | Fiber Optic Transceivers | No. Of Fiber: | 2. |
|---|---|---|---|
| Use: | FTTX | Supply Voltage: | 3.3V |
| Data Rate: | 155M | Wavelength: | 1310nm, 1550nm |
| Transmission Distance: | 2km, 10km, 20km, 40km, 60km, 80km | Interface: | Duplex LC |
| Fiber Type: | SMF | DDMI: | Yes |
| Warranty: | 3 Years | Selling Units: | 1 Pair |
| Single Package Size : | 22X5X6 Cm | Single Gross Weight: | 0.030 Kg |
| Package Type: | 10pcs/ Anti-static Box. | ||
| High Light: | CWDM Fiber Optic Sfp Module,80km Fiber Optic Sfp Module,155Mbps Fiber Optic Sfp Module |
||

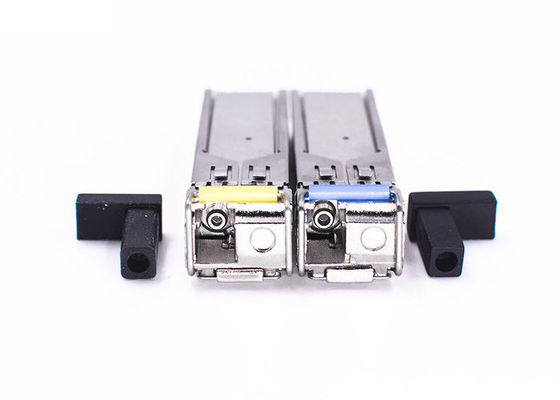

155M Duplex LC DDM SFP Optical Transceiver Module
Features
Applications
Compliance
Specification
| Technical Parameters | Descriptions | Technical Parameters | Descriptions |
| Model Number | YXF-FE | Interface | LC |
| Fiber type | SMF | Laser/Detector |
DFB/APD FP/PIN, DFB/PIN |
| Form Factor | Duplex SFP | DDM | Yes |
| Data Rate | 155Mbps | Certificate | CE,ROHS,FCC,ISO9001,SGS |
| Wavelength | 1310nm, 1550nm | Power Supply | 3.3V |
| Distance | 2km, 10km, 20km, 40km, 60km, 80km, 100km, 120km | Temperature | 0~70°C |
| Selling Units | Single | Warranty | 1Year |
