Product Details:
|
| Type: | Fiber Optic Transceivers | No. Of Fiber: | 1. |
|---|---|---|---|
| Use: | FTTX | Supply Voltage: | 3.3V |
| Power: | 3~-5dBm | Data Rate: | 155M |
| Wavelength: | Tx1310/Rx1550nm, Tx1550nm/Rx1310nmn | Transmission Distance: | 60km |
| Interface: | BIDI LC | Fiber Type: | SMF |
| DDMI: | Yes | Warranty: | 1 Year |
| Selling Units: | 1 Pair | Single Package Size : | 22X5X6 Cm |
| Single Gross Weight: | 0.060 Kg | Package Type: | 10pcs/ Anti-static Box. |
| High Light: | FTTX Optical Fiber Module,DDM Optical Fiber Module,155Mbps wdm sfp module |
||

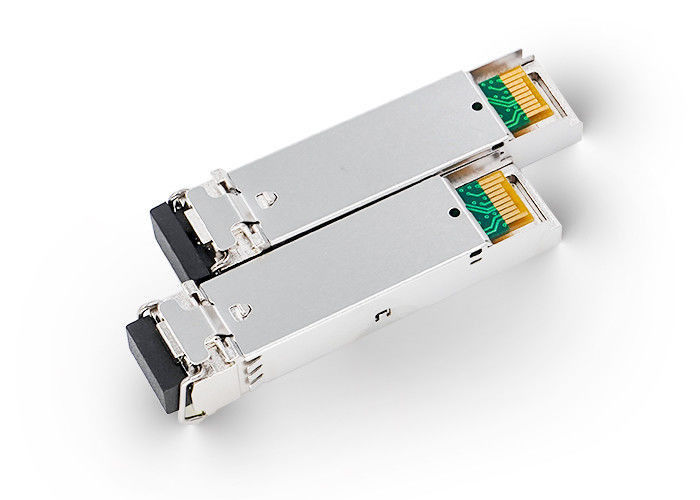

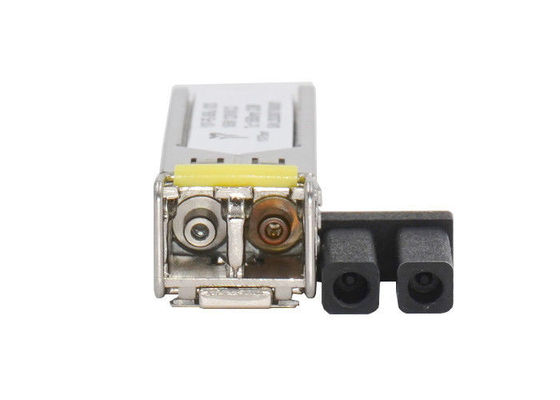

155Mbps 60km BIDI WDM DDM SFP Module With LC Connector
Features
Applications
Compliance
Specification
| Technical Parameters | Descriptions | Technical Parameters | Descriptions |
| Model Number | YXF-FE-B35L-60D, YXF-FE-B53L-60D | Interface | LC |
| Fiber type | SMF | Laser/Detector |
1310nm: FP/PIN, |
| Form Factor | BIDI SFP | DDM | Yes |
| Data Rate | 155Mbps | Output Power | 3~-5dBm |
| Wavelength | Tx1310/Rx1550nm, Tx1550nm/Rx1310nmn | Power Supply | 3.3V |
| Distance | 60KM | Temperature | 0~70°C |
| Sensitivity | <-34.0dBm | Certificate | CE,ROHS,FCC,ISO9001,SGS |
| Selling Units | 1 Pair | Warranty | 1Year |
