Product Details:
|
| Product Name: | Fiber Adapter | Port: | Sc Duplex |
|---|---|---|---|
| Fiber Type: | SM/MM/OM3 | Insertion Loss: | ≤0.2db |
| Return Loss: | Upc≥50db/apc≥60db | Frequency Of Usage: | ≥1000 Times |
| Operating Temperature: | -40℃~+80℃ | Warranty: | 1 Year |
| High Light: | Sc Upc Fiber Optic Coupler,Singlemode Duplex Fiber Optic Accessories,Singlemode Duplex Fiber Optic Coupler |
||
Small Fiber Optic Accessories Sc Upc Singlemode Duplex Fiber Optic Adapter With Flange
Description
Fiber optic adapter is also called fiber optic coupler. People sometimes also name them to be mating sleeves and hybrid adaptors. They include many types, such as FC, SC, ST, LC, MTRJ, Widely used in ODF, fiber transmission equipment etc.
The product is an elastic clip structure, which is convenient and quick to connect and easy to install on site. The internal assembly is 100% high quality ceramic (zirconia) sleeve, which has extremely reliable alignment ability, good repeatability and low insertion loss. The structure conforms to the domestic optical fiber industry standard and the international IEC standard; it is suitable for various connection types of optical fiber SC type.
Feature
Low insertion and back reflection loss, high precision alignment
Telcordia, TIA/EIA compliance
Compact design, Plastic housing
Good changeability and repeatability
Good Durability
Specification
| Name | Fiber Optic Adaptor |
| Connection locking force | ≥70N |
| Insertion loss | <0.2dB |
| Ruturn Loss | ≥50db |
| Repeatability | ≤0.2dB |
| Repeated insertion | ≥1000 times |
| Aadapter | LC |
| A end polishing | PC, UPC, APC |
| B adapter | SC |
| B end polishing | PC, UPC, APC |
| Wavelength | 1200-1600 |
| Mode | SM, OM1, OM2, OM3, OM4 |
| Color | Green;Blue |
| Certification | RoHS and IEC |
| Other info. customize |
Sleeve type: Zorconia or Metal Dust cap color: Standard black or provinding figure to confirm Dust cap shape: as showed in the figure or provinding other figure to confirm Flange: without flange |
Application
1. Fiber Optical Communication System
2. FTTH
3. Local Area Network
4. Fiber Sensor
5. CATV

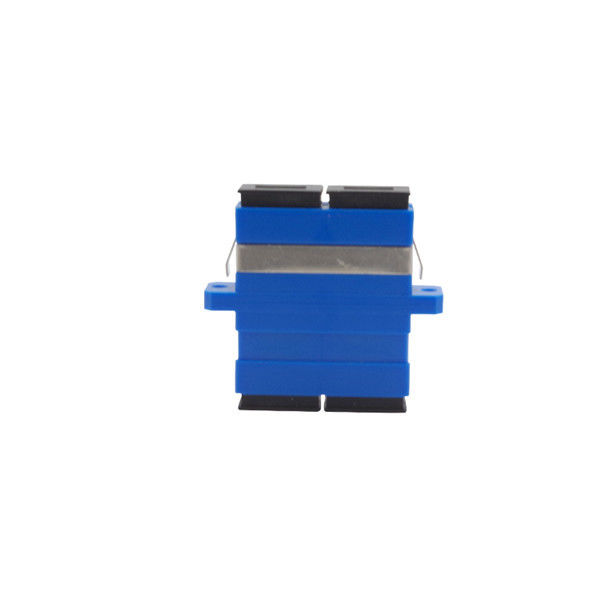

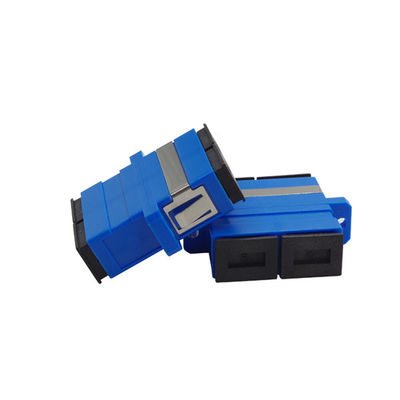

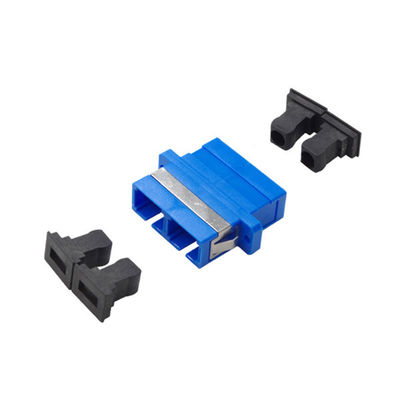

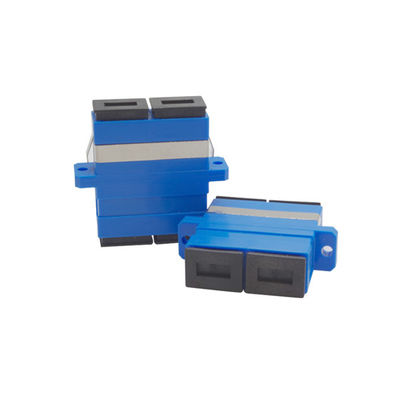

Product pictures
FAQ
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-6 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
