Product Details:
|
| Product Name: | Fiber Adapter | Connector: | FC-SC |
|---|---|---|---|
| Fiber Type: | SM | Insertion Loss: | ≤0.2db |
| Return Loss: | Upc≥50db/apc≥60db | Frequency Of Usage: | ≥1000 Times |
| Operating Temperature: | -40℃~+80℃ | Warranty: | 1 Year |
| High Light: | Sc Fc Fiber Cable Coupler,Hybrid Fiber Cable Coupler,sc Fc Fiber Optic Accessories |
||
Hybrid Singlemode Sc Fc Adapter Fiber Optic Cable Coupler 1 Year Warranty
Description
Fiber optic adapter is also called fiber optic coupler. People sometimes also name them to be mating sleeves and hybrid adaptors. They include many types, such as FC, SC, ST, LC, MTRJ, Widely used in ODF, fiber transmission equipment etc.
The product is an elastic clip structure, which is convenient and quick to connect and easy to install on site. The internal assembly is 100% high quality ceramic (zirconia) sleeve, which has extremely reliable alignment ability, good repeatability and low insertion loss. The structure conforms to the domestic optical fiber industry standard and the international IEC standard; it is suitable for various connection types of optical fiber SC type.
Feature
LC/SC/FC/ST Type Optional
UPC or APC Optional
SM or MM Optional
With/Without flange Optional
Simplex , Duplex or Quad Optional
Zirconia Sleeve ,Compact design
Low insertional loss, High return loss
Comply with IEC, Telcordia GR 326 and JIS standard
Low insertion and back reflection loss, high precision alignment
Telcordia, TIA/EIA compliance
Compact design, Plastic housing
Good changeability and repeatability
Good Durability
Specification
| Parameter | Unit | LC, SC, FC, ST | |||
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| Insertion Loss (Typical) | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
| Exchangeability | dB | ≤0.2 | |||
| Repeatability | dB | ≤0.2 | |||
| Durability | Time | >1000 | |||
| Operating Temperature | °C | -40~75 | |||
| Storage Temperature | °C | -45~85 | |||
Application
1.Fiber Optical Communication System
2.FTTH
3.Local Area Network
4.Fiber Sensor
5.CATV

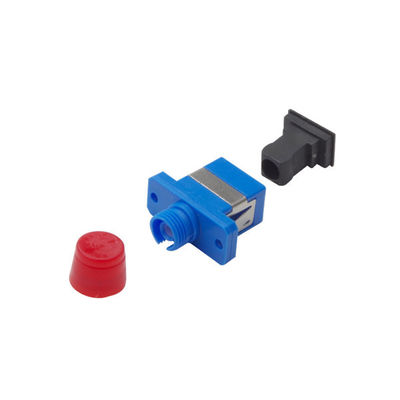

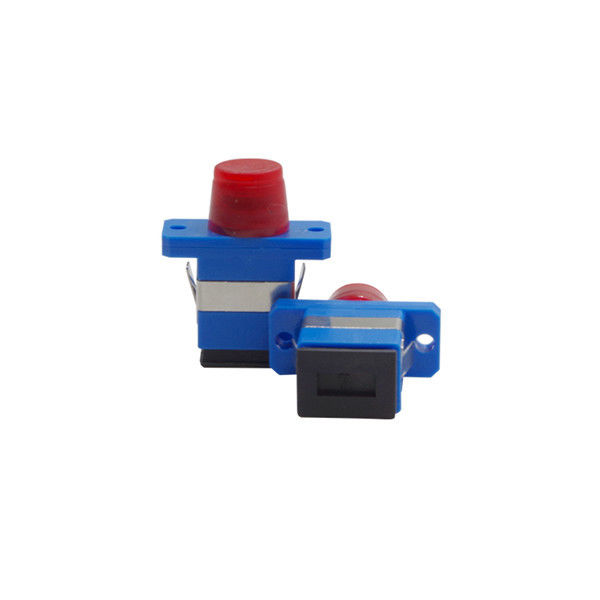

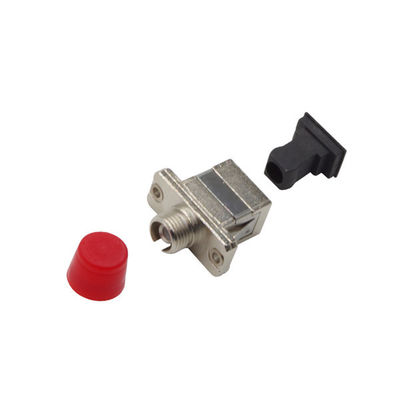

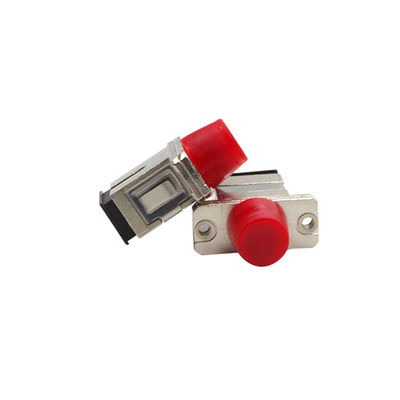

Product pictures
