Product Details:
|
| Product Name: | Fiber Adapter | Connector: | St-St |
|---|---|---|---|
| Fiber Type: | SM | Insertion Loss: | ≤0.2db |
| Return Loss: | Upc≥50db/apc≥60db | Frequency Of Usage: | ≥1000 Times |
| Operating Temperature: | -40℃~+80℃ | Warranty: | 1 Year |
| High Light: | Singlemode Sc To St Adapter,Simplex Sc To St Adapter,Singlemode Simplex Fiber Optic Accessories |
||
Singlemode Simplex Fiber Optic Accessories St To St Fiber Coupler Plastic Housing
Description
Fiber optic adapter is also called fiber optic coupler. People sometimes also name them to be mating sleeves and hybrid adaptors. They include many types, such as FC, SC, ST, LC, MTRJ, Widely used in ODF, fiber transmission equipment etc.
The product is an elastic clip structure, which is convenient and quick to connect and easy to install on site. The internal assembly is 100% high quality ceramic (zirconia) sleeve, which has extremely reliable alignment ability, good repeatability and low insertion loss. The structure conforms to the domestic optical fiber industry standard and the international IEC standard; it is suitable for various connection types of optical fiber SC type.
Feature
LC/SC/FC/ST Type Optional
UPC or APC Optional
SM or MM Optional
With/Without flange Optional
Simplex , Duplex or Quad Optional
Zirconia Sleeve ,Compact design
Low insertional loss, High return loss
Comply with IEC, Telcordia GR 326 and JIS standard
Low insertion and back reflection loss, high precision alignment
Telcordia, TIA/EIA compliance
Compact design, Plastic housing
Good changeability and repeatability
Good Durability
Specification
| Name | Fiber Optic Adaptor |
| Connection locking force | ≥70N |
| Insertion loss | <0.2dB |
| Ruturn Loss | ≥50db |
| Repeatability | ≤0.2dB |
| Repeated insertion | ≥1000 times |
| A adapter | FC |
| A end polishing | PC, UPC, APC |
| B adapter | ST |
| B end polishing | PC, UPC, APC |
| Wavelength | 1200-1600 |
| Mode | SM, OM1, OM2, OM3, OM4 |
| Color | Green;Blue |
| Certification | RoHS and IEC |
| Other info. customize |
Sleeve type: Zorconia or Metal Dust cap color: Standard black or provinding figure to confirm Dust cap shape: as showed in the figure or provinding other figure to confirm Flange: without flange |
Application
1.Fiber Optical Communication System
2.FTTH
3.Local Area Network
4.Fiber Sensor
5.CATV

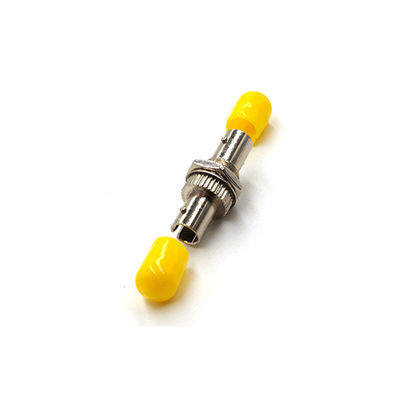

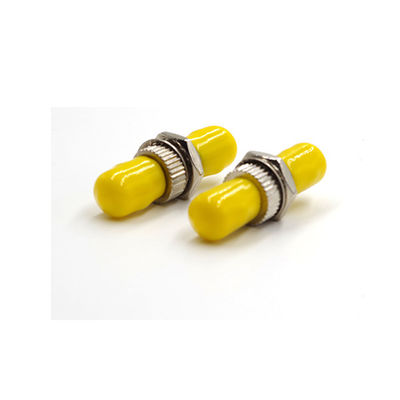

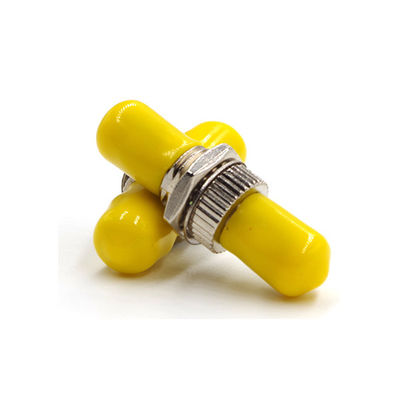

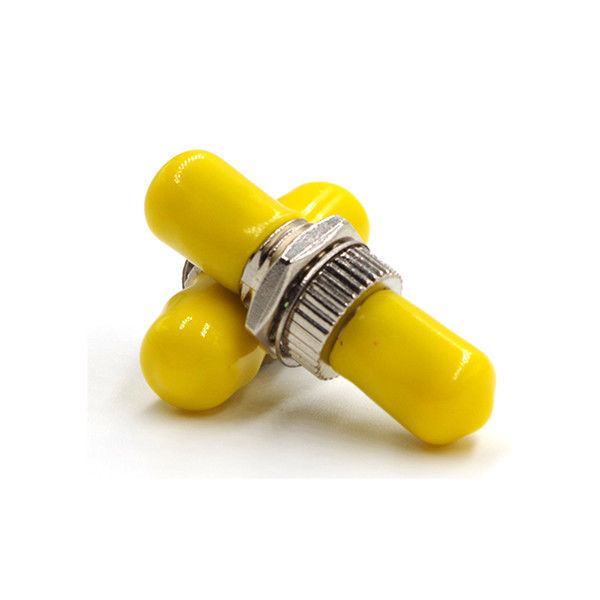

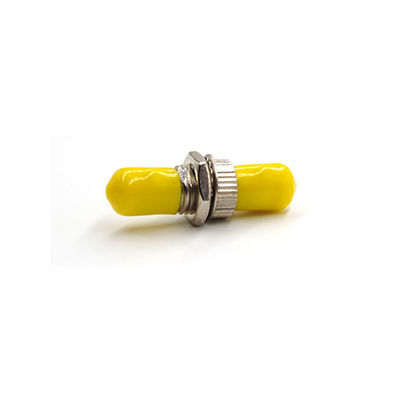

Product pictures
