Product Details:
|
| Type: | Sfp Fiber Transceiver | No. Of Fiber: | 1 |
|---|---|---|---|
| Use: | FTTX | Supply Voltage: | 3.3V |
| Power: | 0~-6dBm | Data Rate: | 2.5G |
| Wavelength: | Tx1310/Rx1550, Tx1550/Rx1310nm | Transmission Distance: | 20km |
| Interface: | BIDI LC | Fiber Type: | SMF |
| DDMI: | Yes | Warranty: | 1 Year |
| Selling Units: | 1 Pair | Single Package Size : | 22X5X6 Cm |
| Single Gross Weight: | 0.030 Kg | Package Type: | 10pcs/ Anti-static Box. |
| High Light: | 20km SFP Optical Transceivers,3.3V SFP Optical Transceivers,Low EMI sfp fiber transceiver |
||
Features:
1. Industry standard Small Form Pluggable (SFP) package.
2. Digital diagnostic monitor interface compliant with SFF-8472.
3. 1310nm FP/1550nm DFB Laser and PIN receiver.
4. Very low EMI and excellent ESD protection
5. Power consumption less than 1.0W.
6. Hot-pluggable capability.
Advantages:
1. The transceiver is a low power, high performance, cost effective module supporting data-rate up to 2.5Gbps 20km transmission distance.
2. The low jitter and high sensitivity are extinguished advantages with 1310nm FP/1550nm DFB LD and PIN/TIA receiver.
3. The transceiver incorporates TX_DIS control, TX-FAULT and RX_LOS monitor functions. The devices are Class I laser safety compliant.
Specifications:
| Technical Parameters | Descriptions | Technical Parameters | Descriptions |

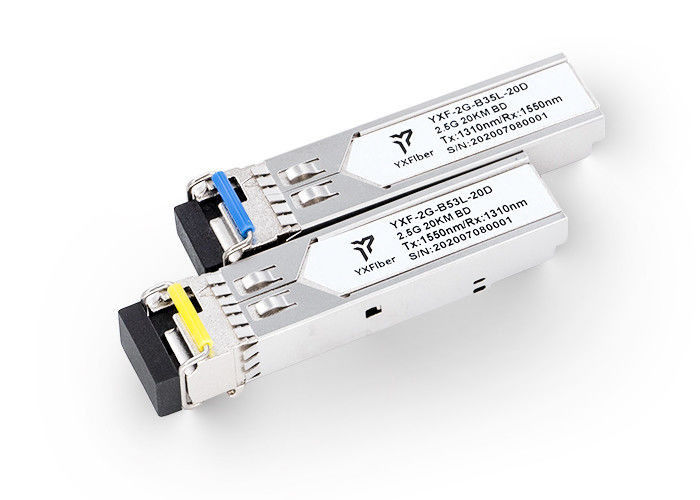

| Model Number | YXF-2G-B35L-20D, YXF-2G-B53L-20D | Interface | LC |
| Fiber type | SMF | Laser/Detector |
1310 FP/PIN DFB/PIN |
| Form Factor | BIDI SFP | DDM | Yes |
| Data Rate | 2.5Gbps | Output Power | 0~-6dBm |
| Wavelength | 1550/1310nm | Power Supply | 3.3V |
| Distance | 20KM | Temperature | 0~70°C |
| Sensitivity | <-18.0dBm | Certificate | CE,ROHS,FCC,ISO9001,SGS |
| Selling Units | 1 Pair | Warranty | 1 Year |
