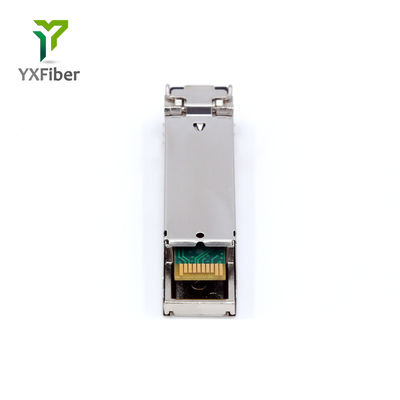

Product Details:
|
| Type: | Fiber Optic Transceivers | No. Of Fiber: | 1 |
|---|---|---|---|
| Use: | FTTX | Supply Voltage: | 3.3V |
| Power: | 5~-2dBm | Data Rate: | 2.5G |
| Wavelength: | 1550/1490nm | Transmission Distance: | 80km |
| Interface: | BIDI LC | Fiber Type: | SMF |
| DDMI: | Yes | Warranty: | 1 Year |
| Selling Units: | Single Item | Single Package Size : | 22X5X6 Cm |
| Single Gross Weight: | 0.030 Kg | Package Type: | 10pcs/ Anti-static Box. |
| High Light: | 2.5Gbps SFP Optical Transceivers,1490nm SFP Optical Transceivers,2.5Gbps bidi sfp transceiver |
||
Features:
1. 2.5G-1550/1490nm-80KM
2. Dual data-rate of 2.5Gbps operation
3. 1550nm DFB laser and PIN photo detector for 80km transmission
4. 1490nm DFB laser and PIN photo detector for 80km transmission
5. BIDI LC/UPC type pluggable optical interface
6. Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
7. RoHS compliant and lead-free
8. Single +3.3V power supply
9. Support Digital Diagnostic Monitoring interface
10. Case operating temperature Commercial: 0°C to +70°C
Advantages:
1. The transceiver is a low power, high performance, cost effective module supporting data-rate up to 2.5Gbps 40km transmission distance.
2. The low jitter and high sensitivity are extinguished advantages with DFB LD and PIN receiver.
3. The transceiver incorporates TX_DIS control, TX-FAULT and RX_LOS monitor functions. The devices are Class I laser safety compliant.
Specifications:
| Technical Parameters | Descriptions | Technical Parameters | Descriptions |
| Model Number | YXF-2G-B54L-80D | Interface | LC |
| Fiber type | SMF | Laser/Detector | DFB/PIN |
| Form Factor | BIDI SFP | DDM | Yes |
| Data Rate | 2.5Gbps | Output Power | 5~-2dBm |
| Wavelength | 1550/1490nm | Power Supply | 3.3V |
| Distance | 80KM | Temperature | 0~70°C |
| Sensitivity | <-28.0dBm | Certificate | CE,ROHS,FCC,ISO9001,SGS |
| Selling Units | Single | Warranty | 1Year |
