Product Details:
|
| Type: | Fiber Optic Transceivers | No. Of Fiber: | 2. |
|---|---|---|---|
| Use: | FTTX | Supply Voltage: | 3.3V |
| Power: | 0~-6dBm | Data Rate: | 2.5G |
| Wavelength: | 1310nm | Transmission Distance: | 20km |
| Interface: | Duplex LC | Fiber Type: | SMF |
| DDMI: | Yes | Warranty: | 1 Year |
| Selling Units: | Single Item | Single Package Size : | 22X5X6 Cm |
| Single Gross Weight: | 0.030 Kg | Package Type: | 10pcs/ Anti-static Box. |
| High Light: | 1310nm Lc Sfp Transceiver,DDM Lc Sfp Transceiver,Duplex optical sfp transceiver |
||

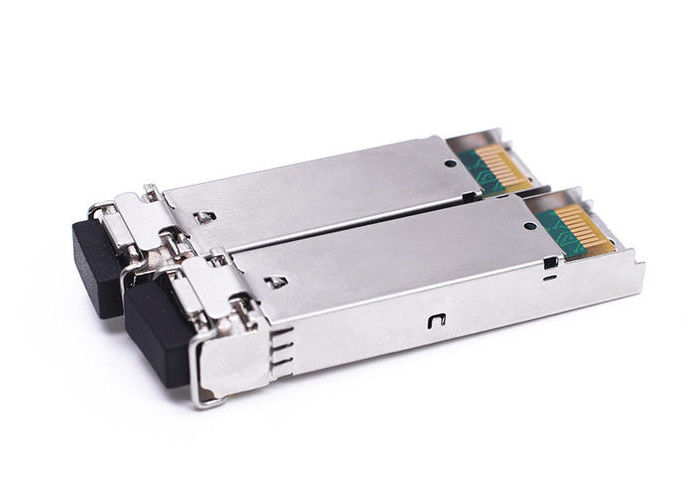

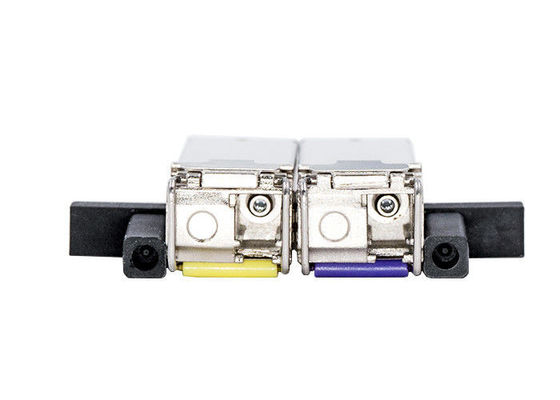

Duplex 20km LC DDM 1310nm 2.5G SFP Transceiver Module
Features:
1. Industry standard Small Form Pluggable (SFP) package.
2. Digital diagnostic monitor interface compliant with SFF-8472.
3. Differential inputs and Differential outputs compliant with LVPECL and CML.
4. TTL signal detect indicator.
5. RoHS compliant.
6. Hot-pluggable capability.
Advantages:
1. The transceiver is a low power, high performance, cost effective module supporting data-rate up to 2.5Gbps 20km transmission distance.
2. The transmitter section and the receiver section work independently in the transceiver.
3. The receiver section contains an InGaAs PIN photo diode, a transimpedance amplifier and a post amplifier , functionally transmit received optical power to steady electrical data.
Specifications:
| Technical Parameters | Descriptions | Technical Parameters | Descriptions |
| Model Number | YXF-2G-S31L-20D | Interface | LC |
| Fiber type | SMF | Laser/Detector | DFB/PIN |
| Form Factor | Duplex SFP | DDM | Yes |
| Data Rate | 2.5Mbps | Output Power | 0~-6dBm |
| Wavelength | 1310nm | Power Supply | 3.3V |
| Distance | 20KM | Temperature | 0~70°C |
| Sensitivity | <-18.0dBm | Certificate | CE,ROHS,FCC,ISO9001,SGS |
| Selling Units | Single | Warranty | 1Year |
